Aluminium Loading Ramps (4500x400x4120kg)

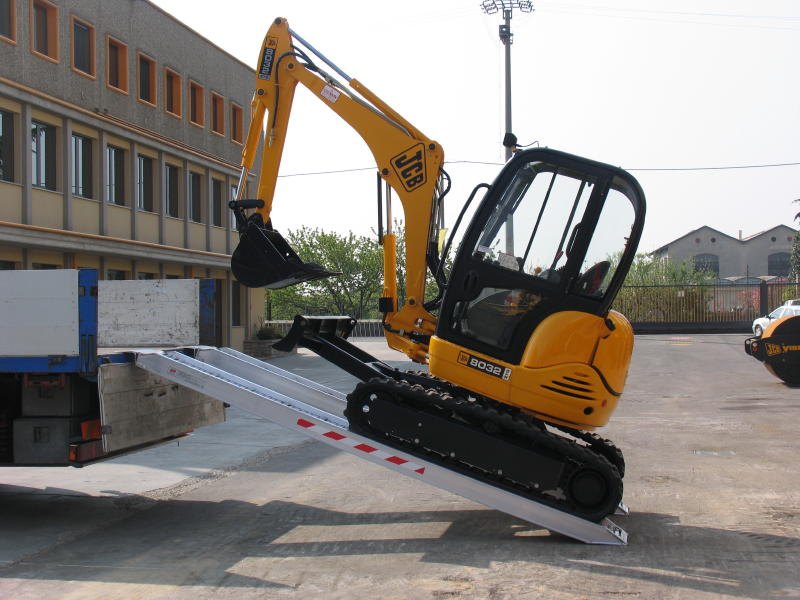

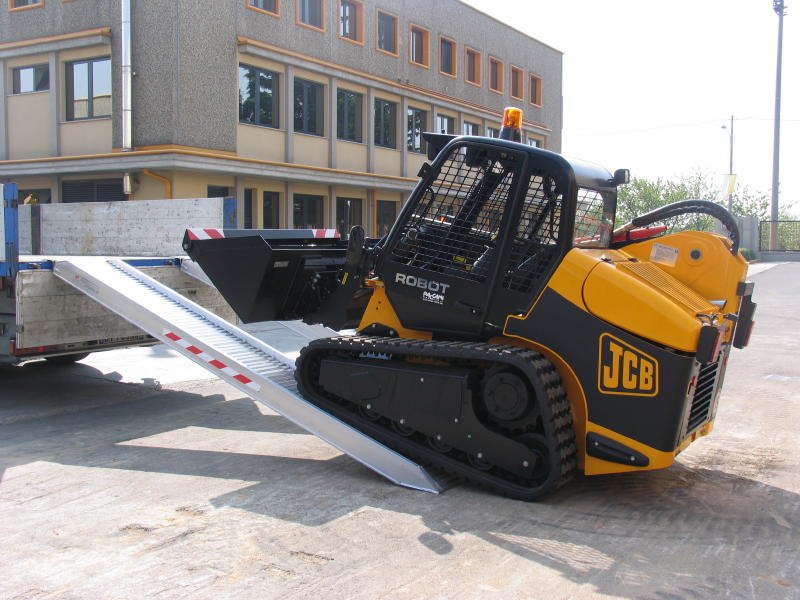

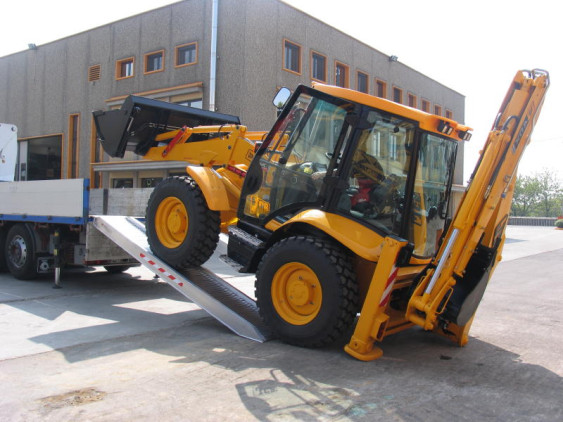

400mm wide x 4500mm long with a 150mm profile thickness. Featuring a maximum capacity of 3745kg, this ramp is ideal for use as a plant ramp, digger ramp or telehandler ramp. Please note the minimum track width is 200mm and maximum 320mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)4500
Width (mm)400
Max. Load Height (mm)1350
Weight Per Ramp (kg)45.5
Weight Per Pair (kg)96
Capacity (kg)4120
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£1,920.00 £1,600.00
SKU
TRP150/45
Built to Order
Talk to The Ramp People's sales team

Some of our best selling medium to heavy duty plant ramp, the TRP150 Series core profile thickness is 150mm. The TRP150 Series has a width of 400mm. They feature a capacity of up to 3745kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP150 series the minimum width of tracks/wheels is 300mm. These Ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Useage Guidelines and Safety Information for these ramps can be found here

SKU TRP150/45
Default Connection Rest On Connection
Capacity (kg) 4120
Height of Ramps Profile (mm) 150
Length (mm) 4500
Max Load Height (mm) 1350
Min. Load Height (mm) 1200
Weight per Ramp (kg) 45.5
Weight Per Pair (kg) 96
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2945
Capacity Wheelbase 1500mm (kg) 3435
Capacity Wheelbase 2000mm (kg) 4120
Usable Width (mm) 340
