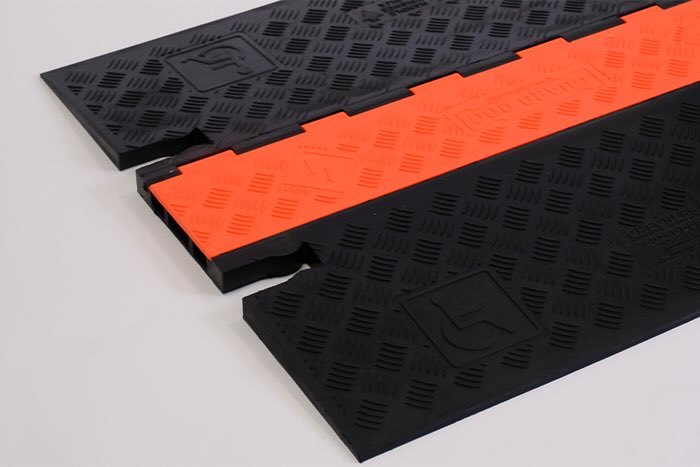

Checkers Guard Dog 3 Channel - Low Profile ADA Version
Guard Dog® low-profile models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment for cables up to 0.75" tall and 1.25" wide. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.
Capacity up to 24,492 kg per axle.
Features:
- Protects cables and hoses up to .75" outside dia.

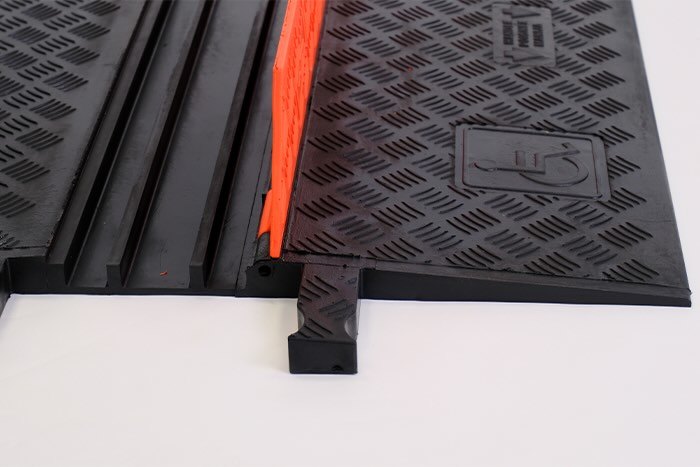

- Dog-Bone® Connectors to extend to any desired length

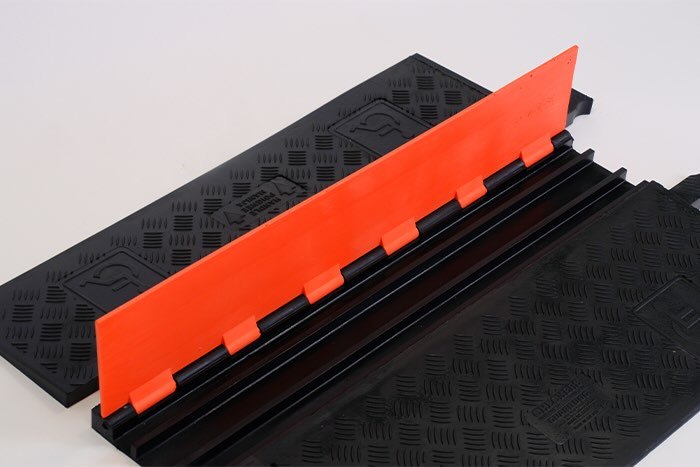

- Reinforced hinged lid for easy cable placement
- With built-in ADA/DDA Accessibility Ramps
- Patented 5-bar tread surface for maximum traction

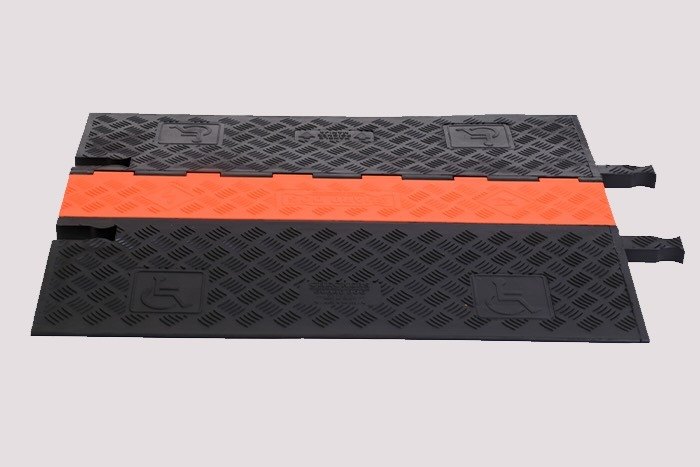

- Modular interlocking design for easy setup
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Description
Safely protect up to 3 cables whilst allowing pedestrian and vehicle traffic to pass over the cables. Provided with a low profile, the cable ramps are perfect for enhancing accessibility and allowing wheelchairs, mobility scooters and pushchairs to safely overcome the cable cover. The Checkers cable protectors are commonly used at events, in business parks and commercial areas.
Key Features
Smooth gradient
Smooth anti-slip surface allows wheelchairs and low-clearance vehicles to pass over the cable ramp safely.


Easy to use

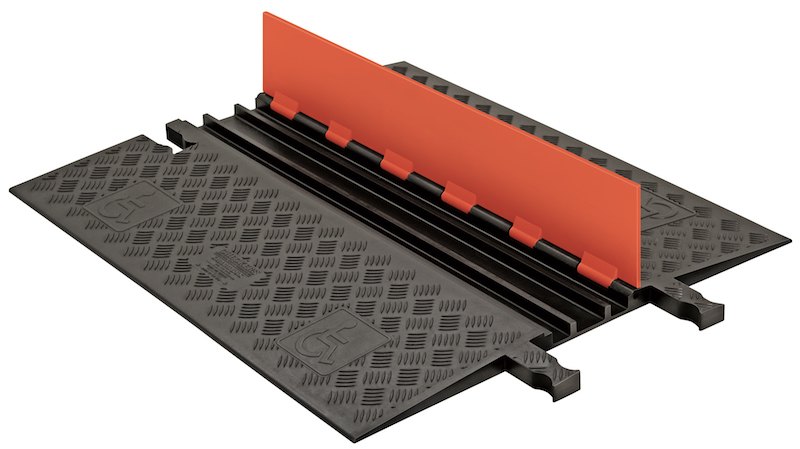

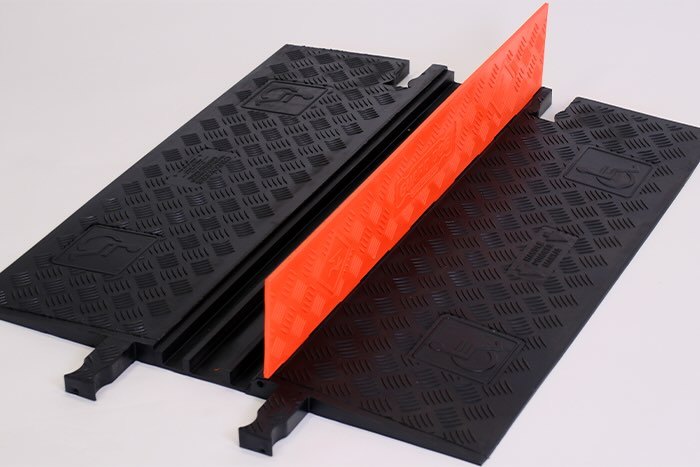

Reinforced high-visibility hinged lid, simply open and insert up to 3 cables.

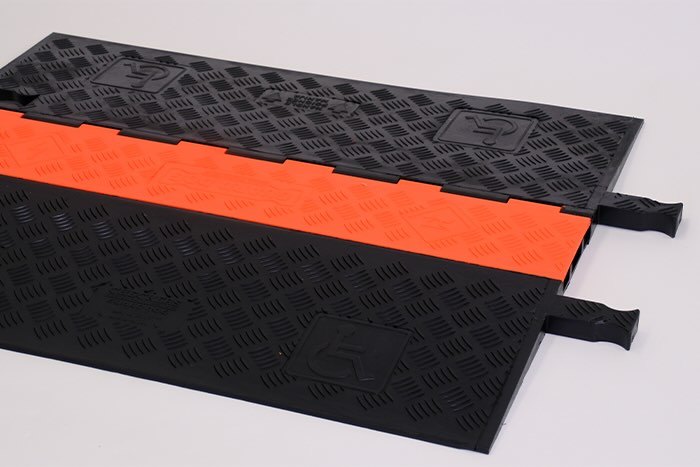

Interlocking
Connect multiple units together to cover your required length, accessories available to allow cables to take turns.

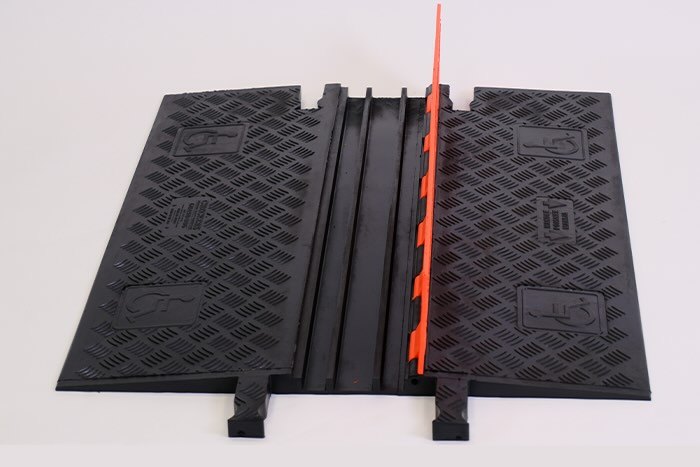

3-channels
3-channels, each channel is 32.5mm x 19mm, perfect for protecting cables and wires.


Product Highlights

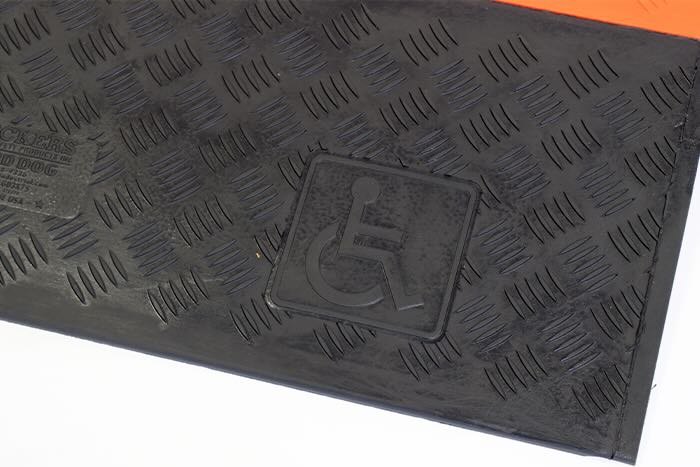

Built for enhanced accessibility
The Checkers DDA / ADA cable protectors offer a low-profile design to allow wheelchairs, mobility scooters and pedestrians to safely overcome cables whilst reducing trip hazards. Due to the low-profile design and capacity, they are also perfect for allowing low-clearance cars and vehicles to overcome cables.
The patented 5-bar tread surface provides optimum traction.
The high-visibility design alerts pedestrians and road users to their presence, in turn encouraging vehicles to slow down.




Durable design
Checker's Guard Dog cable protectors offer dog bone connectors to securely connect multiple units together to cover your required cable length.
The all-weather construction ensures they are perfect for protecting electrical cables at indoor and outdoor use, including use at festivals.
Reuseable design
The cable ramps offer a long-lasting design to allow them to be reused at various sites.
At 10.6kg, the portable cable ramps can be lifted and moved into position by one person.
Additional accessories are available, please contact our team for a quote.


Why Choose Checkers Cable Protectors
Checkers cable ramps are manufactured by the JustRite Safety Group. The patented range, which is manufactured in the USA, is found globally. They feature a long-lasting design and are built for enhancing accessibility.
Safety and peace of mind
This is a FULL-WIDTH row. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam non pulvinar neque, blandit lobortis leo. Suspendisse ac consectetur magna. Integer vel diam aliquam, laoreet tortor a, commodo diam. Nulla vulputate scelerisque sagittis.
Sed molestie, lectus semper mollis eleifend, ante dui eleifend dui, nec vehicula risus mauris in turpis. Nullam euismod neque vel lectus sodales, nec placerat diam interdum.


| SKU | TRP-GD3X75-O/B |
|---|---|
| Height (mm) | 31.8 |
| Length (mm) | 914.4 |
| Weight (kg) | 10.61 |
| Width (mm) | 769.8 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Orange/Black |
| Channel Width (mm) | 32.5 |
| Channel Size (mm) | 32.5 x 19 |
| Channel Height (mm) | 19 |
| No. Channels | 3 |
| Capacity per Axle (kg) | 24,492 |
| Capacity per Tyre (kg) | 12,246 |
| Operating Temperature (deg. F) | 70 |
| Speedlimit (mph) | 10 |
| Colour Option | Black |
