Ramp Capacity, Length & Load Height

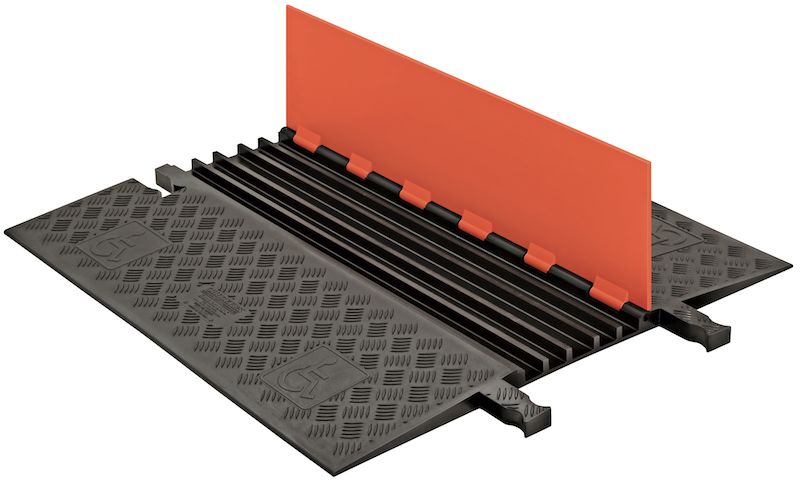

Checkers Guard Dog 5 Channel - Low Profile ADA Version
Guard Dog 5-Channel Cable Protector with the low profile are the most compact top-loading cable protectors on the market. These protectors provide a safer crossing for vehicle and pedestrian traffic, while still maintaining a high load bearing capacity for heavy equipment with a capacity from up to 30,844 kg per axle.
Guard Dog 5-Channel Cable Protector Low Profile with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications. The low profile make these cable protectors perfect for wheelchair users.
- Protects cables and hoses up to 1.58" outside diameter.
- Dog-bone connector to extend to any desired length
- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy setup
- Ideal for use in: amusement parks, entertainment venues, sporting events and most public, commercial, industrial, construction and utility applications
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
|One Year Warranty||Yes|
|Easy to Fit||Yes|
|Cable Protector Color||Orange/Black|
|Channel Width (mm)||32.5|
|Channel Height (mm)||19|
|Capacity per Axle (kg)||30,844|
|Capacity per Tyre (kg)||15,422|
