Aluminium Loading Ramps (3500x360x1900kg)

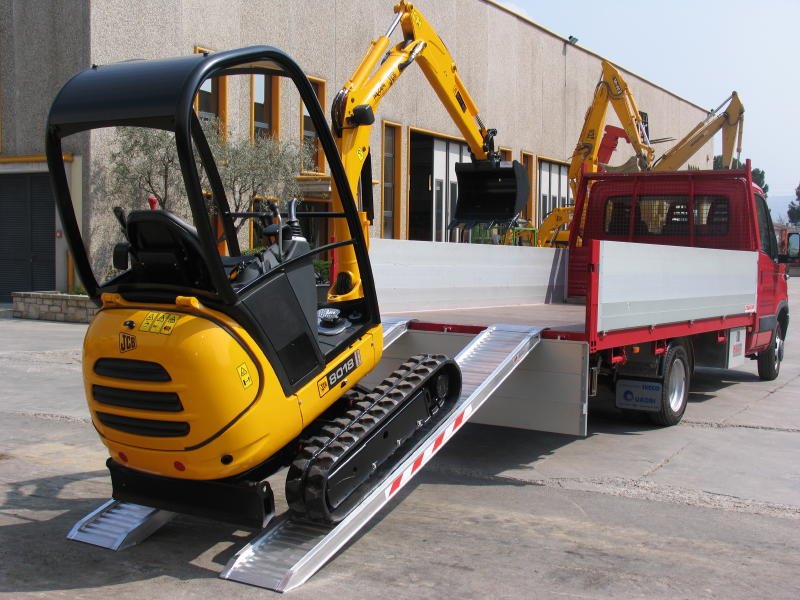

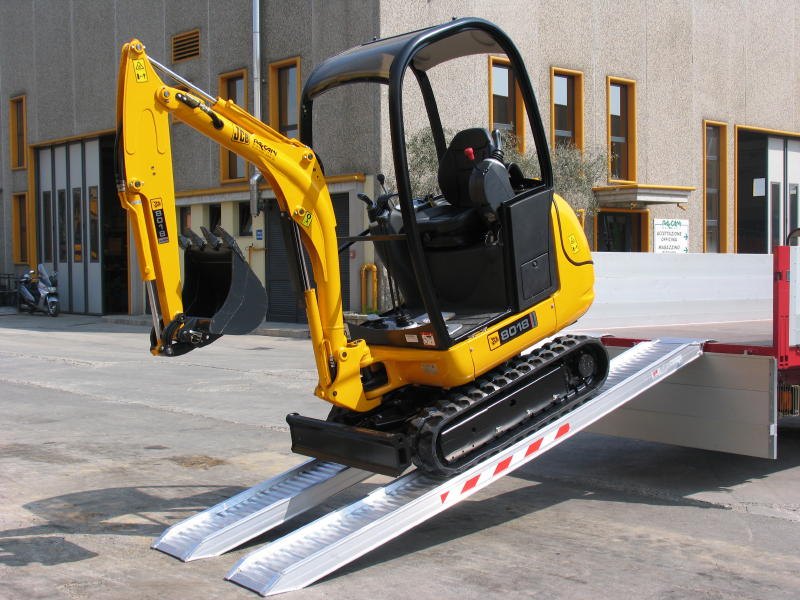

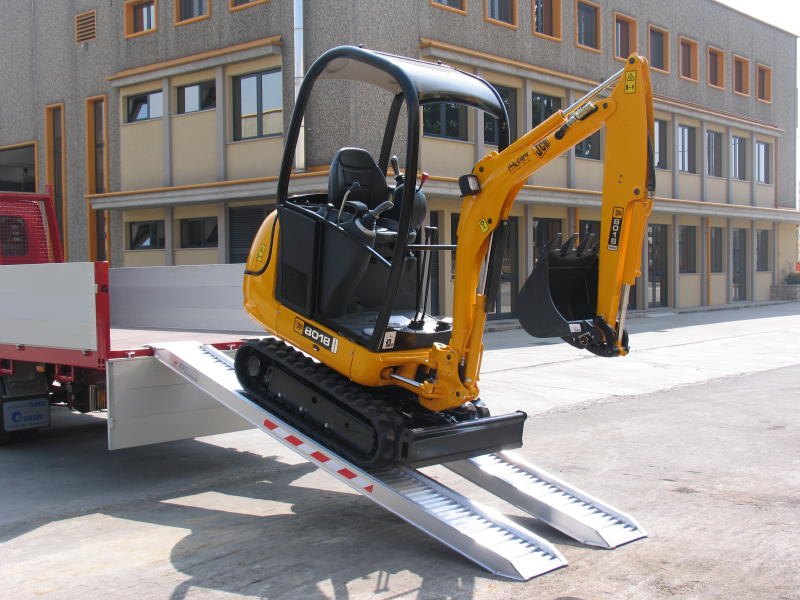

360mm wide x 3500mm long, with a 100mm profile thickness. Featuring a maximum capacity of 1900kg, this ramp is ideal for use as a car ramp or lightweight plant ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request.

Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3500
Width (mm)360
Max. Load Height (mm)1050
Weight Per Ramp (kg)22,5
Weight Per Pair (kg)45
Capacity (kg)1900
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£1,020.00 £850.00
In Stock



The TRP101 Series core profile thickness is 100mm and have a width of 360mm. They feature a capacity of up to 1900kg and are ideal for use as car ramps or lightweight plant ramps. The TRP101 Series has a minimum width of tracks/wheels is 200mm.

These ramps are designed for use at a gradient of 30%.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

SKU TRP101/35
Default Connection Rest On Connection
Capacity (kg) 1900
Height of Ramps Profile (mm) 100
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 22,5
Weight Per Pair (kg) 45
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1500
Capacity Wheelbase 1250mm (kg) 1680
Capacity Wheelbase 1500mm (kg) 1900
