Extra Wide Aluminium Loading Ramps (2500x400x5000kg)
400mm wide x 2500mm long with a 115mm profile thickness. Featuring a maximum capacity of 5000kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.
Some of our best selling plant ramps, the TRP116L has a core profile thickness of 115mm. Their width is 400mm. They feature a capacity of up to 5000kg and are ideal for use as plant ramps and mini digger ramps.
With a width of 400mm, a minimum track width of 200mm is recommended, the maximum track width of 320mm should not be exceeded.
These ramps are not designed for use over 30% gradient.
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection with a pin which is a popular choice for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is normally recommended

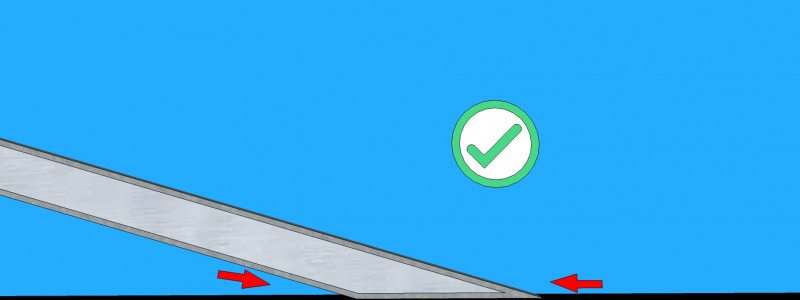

- Foot of the alloy ramp is cut for the load height to ensure smooth entry onto the ramp
- Non-slip aluminium ramp surface

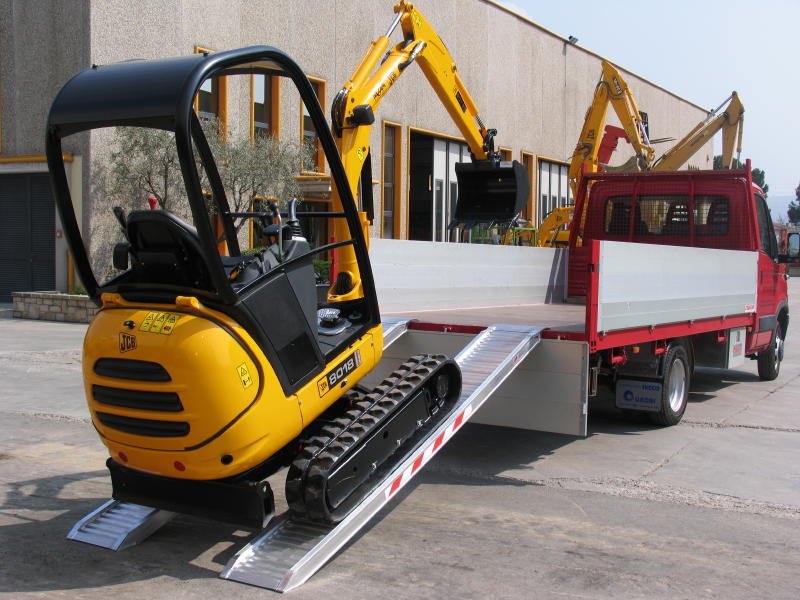

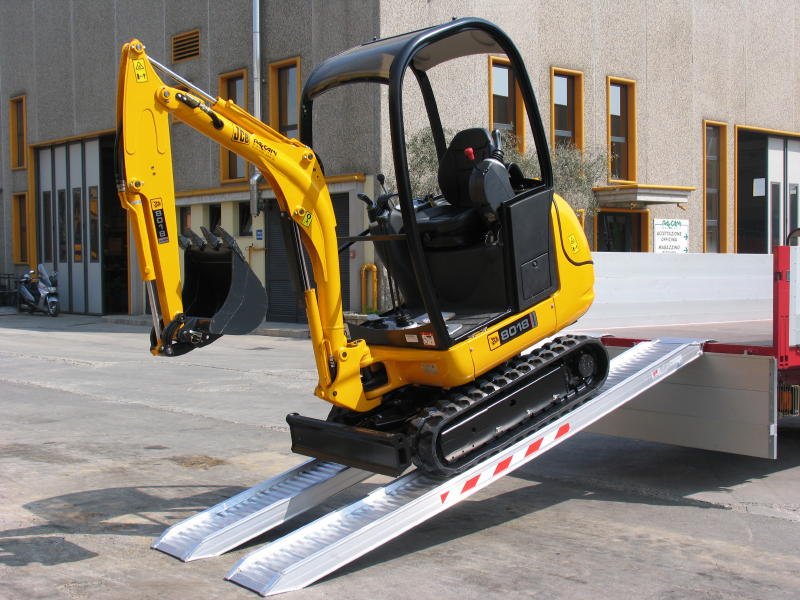

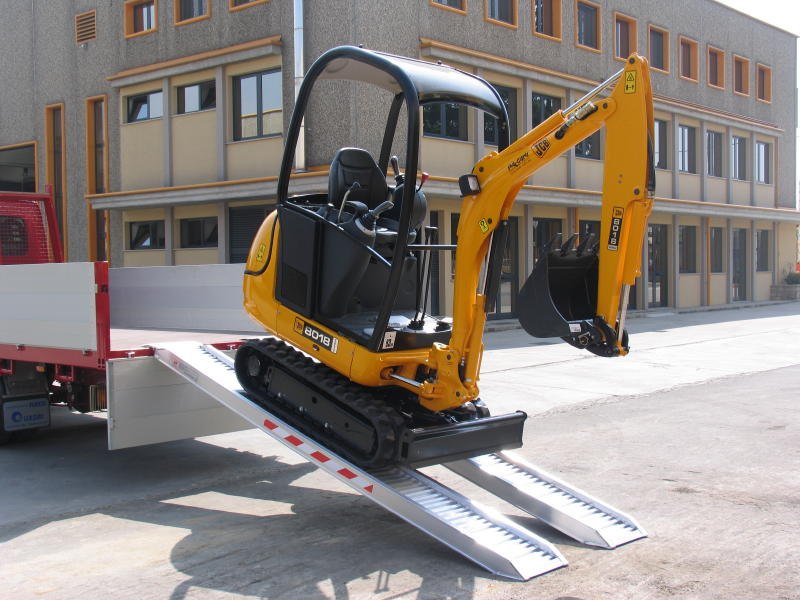

- Designed for loading tracked plant machinery and vehicles including diggers, tractors, excavators and ride-on mowers. Suitable for professional use, popular within the construction and landscaping industries.
- Customisations available including custom load heights, custom sizes and nylon handles
- Made in Europe
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Quotes for bespoke ramps can be supplied on request
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP116/25L |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 5000 |
Height of Ramps Profile (mm) | 115 |
Length (mm) | 2500 |
Max Load Height (mm) | 750 |
Min. Load Height (mm) | 600 |
Weight per Ramp (kg) | 20.5 |
Weight Per Pair (kg) | 41 |
Width (mm) | 400 |
Minimum Track Width (mm) | 200 |
Maximum Track Width (mm) | 320 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 3000 |
Capacity Wheelbase 1500mm (kg) | 4500 |
Capacity Wheelbase 2000mm (kg) | 5000 |
