Aluminium Loading Ramps (2500x400x6000kg)

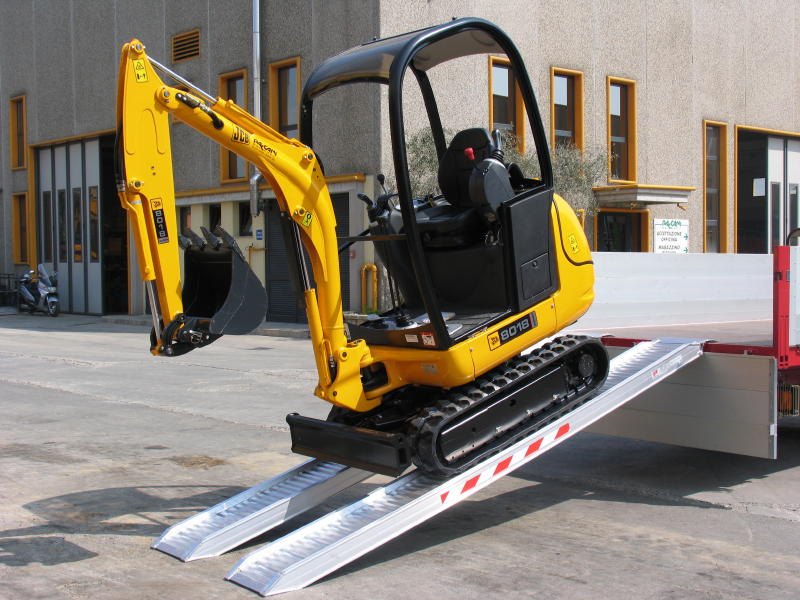

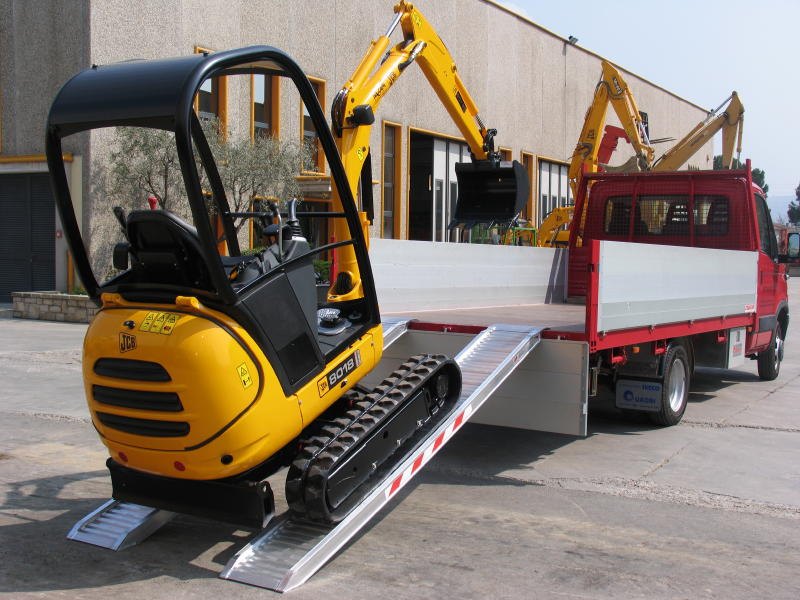

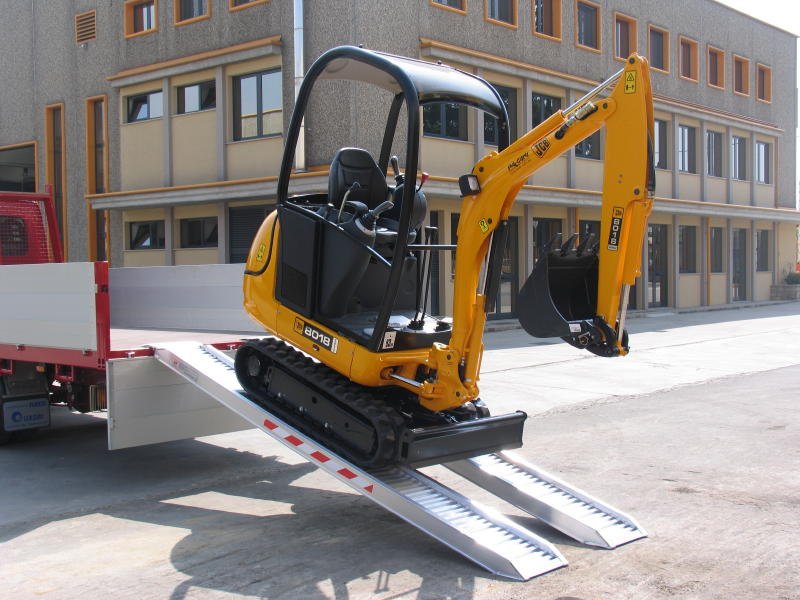

400mm wide x 2500mm long with a 125mm profile thickness. Featuring a maximum capacity of 6000kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)2500
Width (mm)400
Max. Load Height (mm)750
Weight Per Ramp (kg)23
Weight Per Pair (kg)46
Capacity (kg)6000
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£792.00 £660.00
Built to Order
Talk to The Ramp People's sales team

Some of our best selling plant ramps, the TRP125L has a core profile thickness of 125mm. Their width is 400mm. They feature a capacity of up to 6000Kg and are ideal for use as plant ramps and mini digger ramps.

On the TRP125L Series the minimum width of tracks/wheels is 200mm and these ramps are not designed for use over 30% gradient.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP126/25L
Default Connection Rest On Connection
Capacity (kg) 6000
Height of Ramps Profile (mm) 125
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 23
Weight Per Pair (kg) 46
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 4580
Capacity Wheelbase 1500mm (kg) 6000
Capacity Wheelbase 2000mm (kg) 6000
