£1,254.00
£1,045.00
SKU
TRP126/35
In Stock
Aluminium Loading Ramps (3500x360x4580kg)

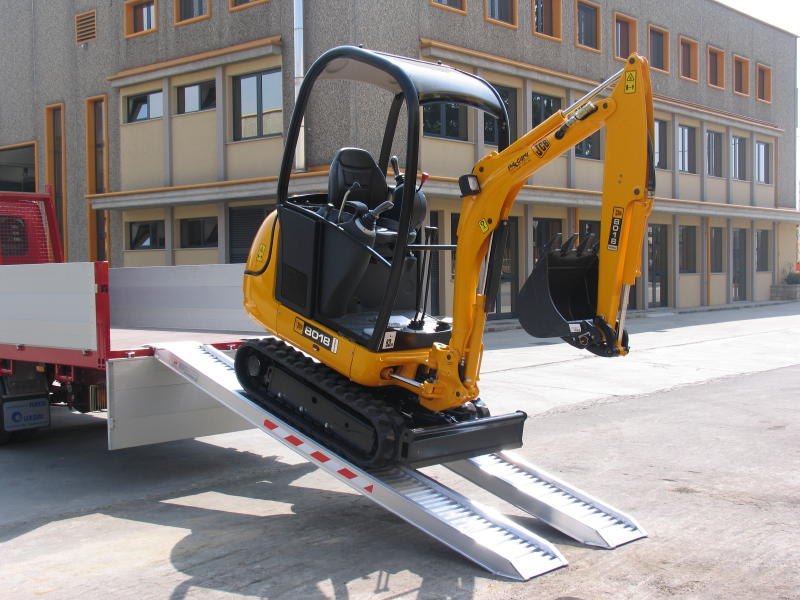

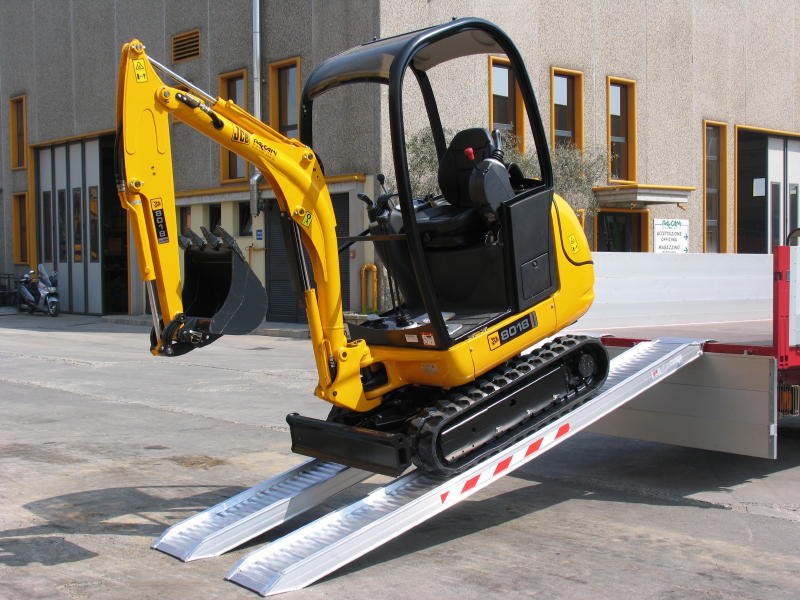

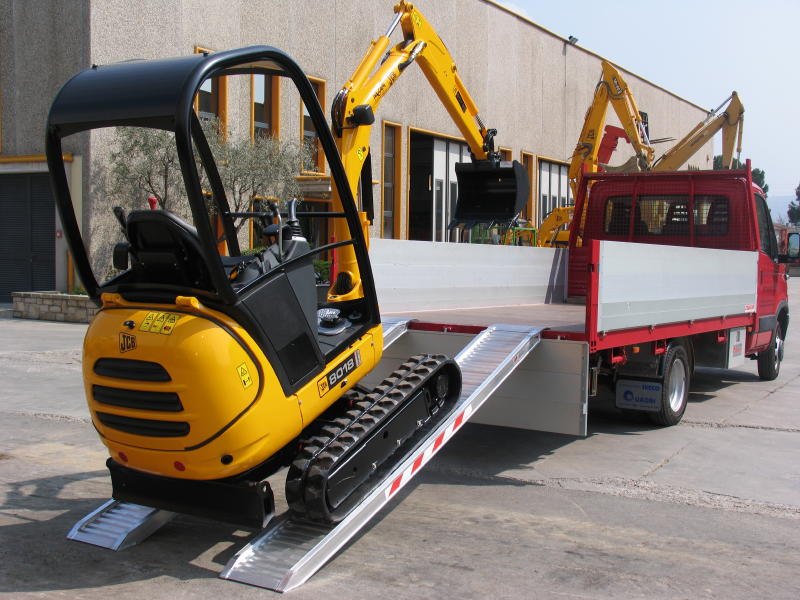

360mm wide x 3500mm long with a 125mm profile thickness. Featuring a maximum capacity of 4580kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.
Description
One of our best selling plant ramps, the TRP126 has a core profile thickness of 125mm. Their width is 360mm. They feature a capacity of up to 4580kg and are ideal for use as plant ramps and mini digger ramps.
On the TRP126 Series the minimum width of tracks/wheels is 200mm and these ramps are not designed for use over 30% gradient
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection with a pin which is a popular choice for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is normally recommended
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Quotes for bespoke ramps can be supplied on request
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
Details
SKU | TRP126/35 |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 4580 |
Height of Ramps Profile (mm) | 125 |
Length (mm) | 3500 |
Max Load Height (mm) | 1050 |
Min. Load Height (mm) | 900 |
Weight per Ramp (kg) | 30 |
Weight Per Pair (kg) | 60 |
Width (mm) | 360 |
Minimum Track Width (mm) | 200 |
Maximum Track Width (mm) | 280 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 2750 |
Capacity Wheelbase 1500mm (kg) | 3435 |
Capacity Wheelbase 2000mm (kg) | 4580 |
