Aluminium Loading Ramps (3000x480x5000kg)

480mm wide x 3000mm long with a 140mm profile thickness. Featuring a maximum capacity of 5000kg, this ramp is ideal for use as a plant ramp, digger ramp or tele-handler ramp. Please note the minimum track width is 350mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3000
Width (mm)480
Max. Load Height (mm)900
Weight Per Ramp (kg)38.5
Weight Per Pair (kg)77
Capacity (kg)5000

Got a question?

Product: Aluminium Loading Ramps (3000x480x5000kg)
SKU: TRP140/30L

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£1,140.00 £950.00
Built to Order
TRP140/30L
Talk to The Ramp People's sales team

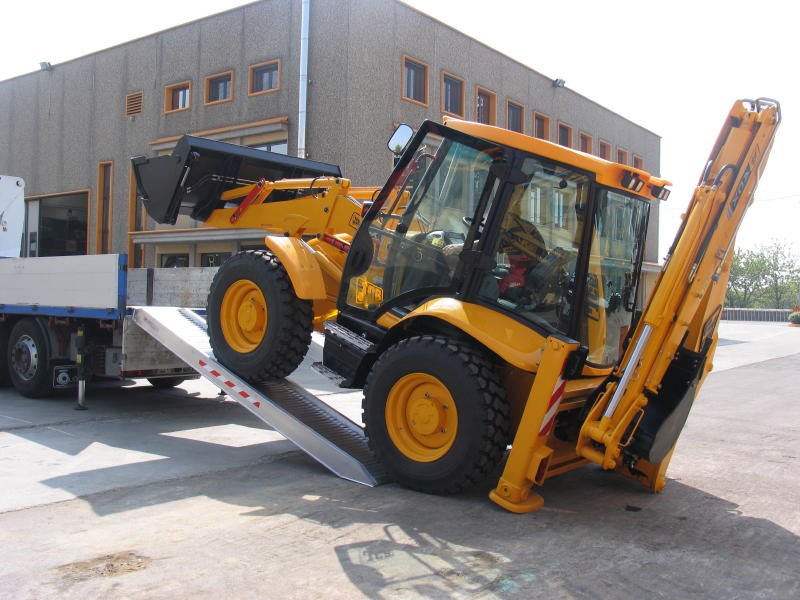

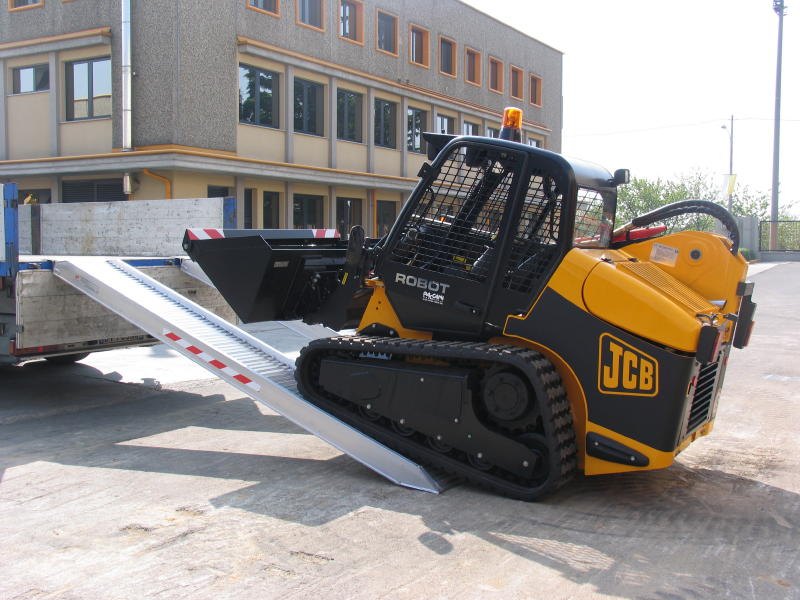

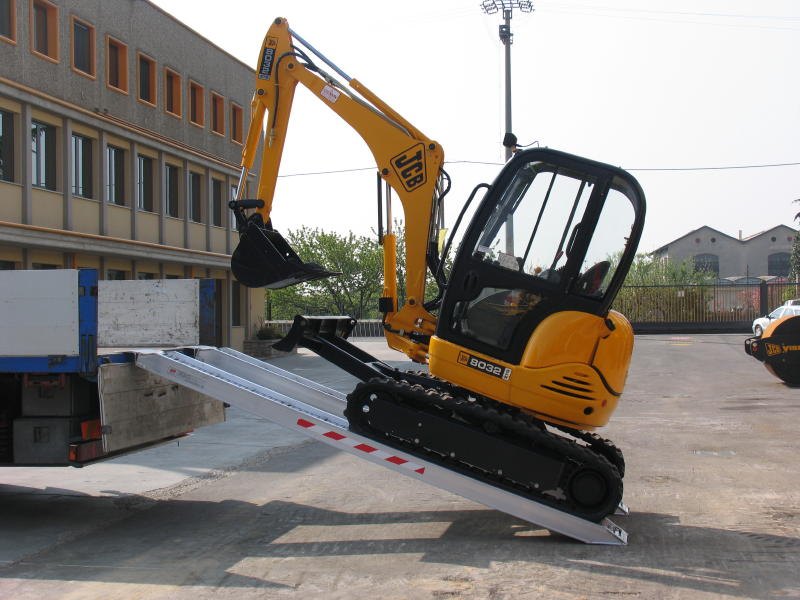

Some of our best selling medium to heavy duty plant ramp, the TRP140L Series has a core profile thickness of 140mm. The TRP140L Series has a width of 480mm, feature a capacity of up to 5000kg and are ideal for use as plant ramps, as digger ramps and for tele-handlers.

On the TRP140L series the minimum width of tracks/wheels is 350mm. These Ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP140/30L
Default Connection Rest On Connection
Capacity (kg) 5000
Height of ramps profile (mm) 140
Length (mm) 3000
Weight per ramp (kg) 38.5
Weight Per Pair (kg) 77
Width (mm) 480
Minimum track width (mm) 350
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 4155
Capacity Wheelbase 1250mm (kg) 4750
Capacity Wheelbase 1500mm (kg) 5000
