£1,614.00 £1,345.00
SKU
TRP140/40L
Built to Order

www.theramppeople.co.uk is secure and your personal details are protected.

Pay by Bank

Extra Wide Aluminium Loading Ramps (4000x480x4155kg)

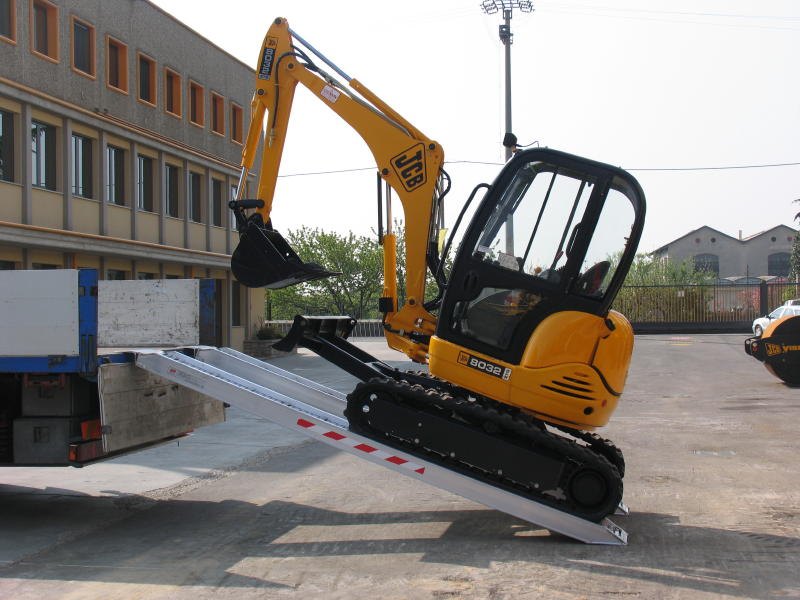

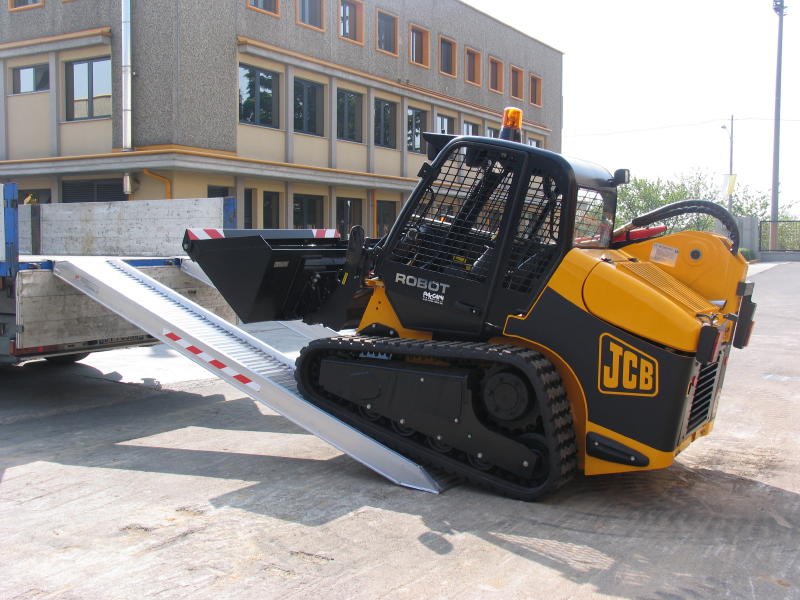

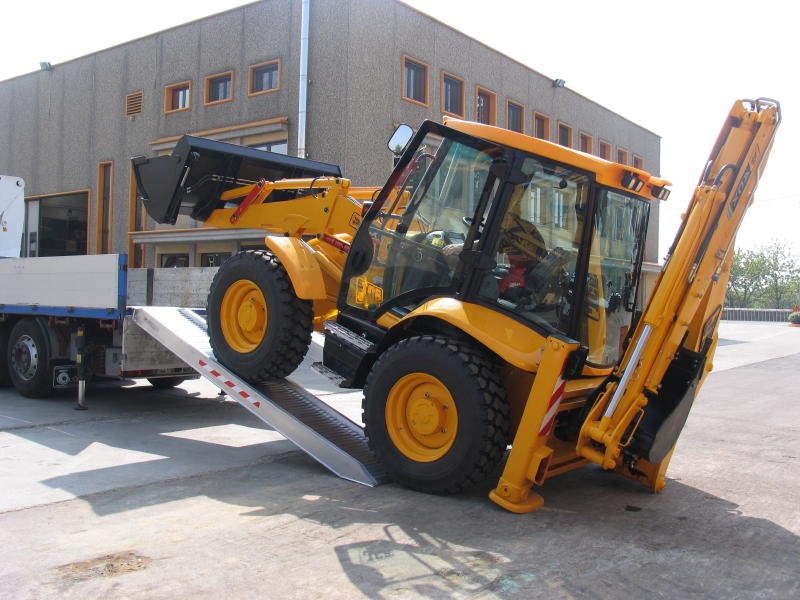

460mm wide x 4000mm long with a 140mm profile thickness. Featuring a maximum capacity of 3325kg, this ramp is ideal for use as a plant ramp, digger ramp or tele-handler ramp. Please note the minimum track width is 200mm and max 320mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Some of our best selling medium to heavy duty plant ramp, the TRP140L Series has a core profile thickness of 140mm. The TRP140L Series has a width of 460mm, feature a capacity of up to 4155kg and are ideal for use as plant ramps, as digger ramps and for tele-handlers.

On the TRP140L series the minimum width of tracks/wheels is 200mm. These ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP140/40L
Default ConnectionRest On Connection
Capacity (kg)4155
Height of Ramps Profile (mm)140
Length (mm)4000
Max Load Height (mm)1200
Min. Load Height (mm)1050
Weight per Ramp (kg)43
Weight Per Pair (kg) 86
Width (mm)480
Minimum Track Width (mm)200
Maximum Track Width (mm)380
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)2770
Capacity Wheelbase 1500mm (kg)3325
Capacity Wheelbase 2000mm (kg)4155
