£2,454.00
£2,045.00
SKU
TRP140/50L
Built to Order
Aluminium Loading Ramps (5000x480x2770kg)

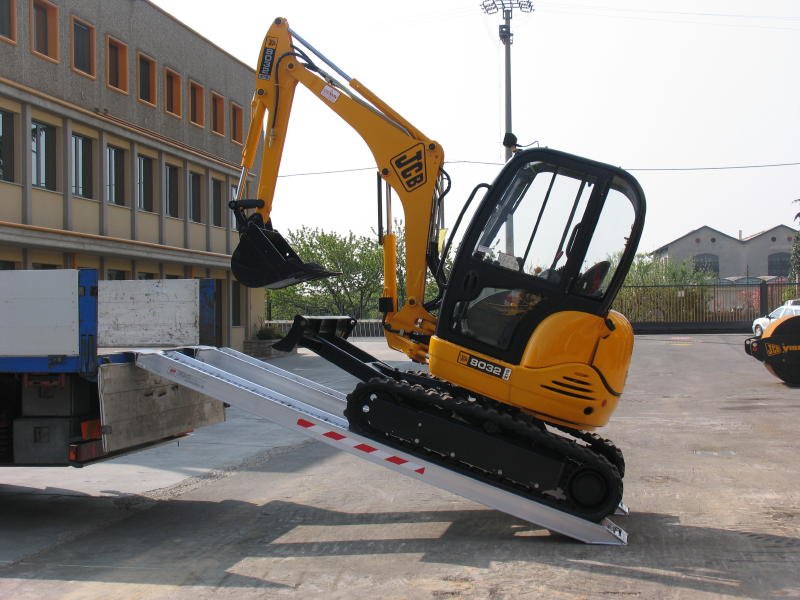

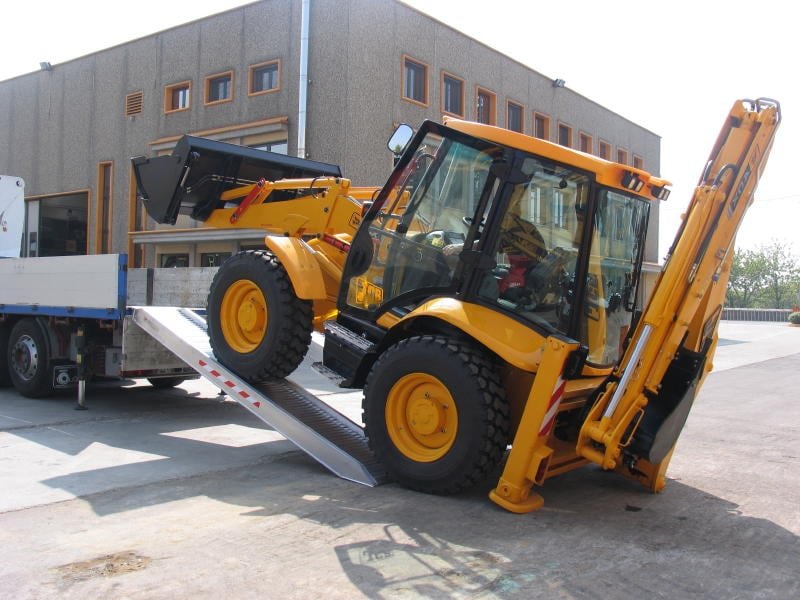

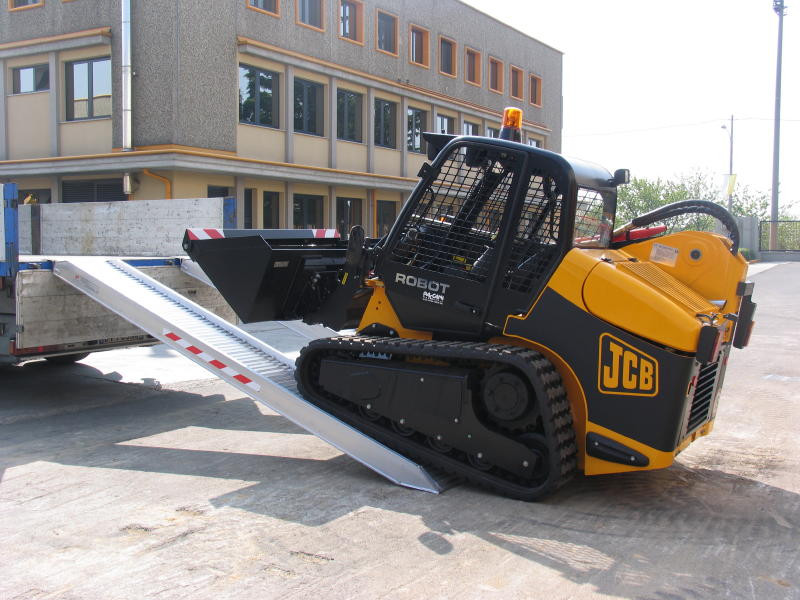

460mm wide x 5000mm long with a 140mm profile thickness. Featuring a maximum capacity of 2375kg, this ramp is ideal for use as a plant ramp, digger ramp or tele-handler ramp. Please note the minimum track width is 200mm and max 380mm.
Custom built sizes are available on request. Price and capacity stated is for the PAIR.
Description
Some of our best selling medium to heavy duty plant ramp, the TRP140L Series has a core profile thickness of 140mm. The TRP140L Series has a width of 460mm, feature a capacity of up to 2770kg and are ideal for use as plant ramps, as digger ramps and for tele-handlers.
On the TRP140L series the minimum width of tracks/wheels is 200mm. These ramps are not designed for use over a 30% gradient
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Fully TÜV certified
- Quotes for bespoke ramps can be supplied on request
Usage guidelines and safety information for our full vehicle ramp range can be found here.
Details
SKU | TRP140/50L |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 2770 |
Height of Ramps Profile (mm) | 140 |
Length (mm) | 5000 |
Max Load Height (mm) | 1500 |
Min. Load Height (mm) | 1350 |
Weight per Ramp (kg) | 61 |
Weight Per Pair (kg) | 122 |
Width (mm) | 480 |
Minimum Track Width (mm) | 200 |
Maximum Track Width (mm) | 380 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 2080 |
Capacity Wheelbase 1500mm (kg) | 2375 |
Capacity Wheelbase 2000mm (kg) | 2770 |
