£1,380.00 £1,150.00
SKU
TRP150/25LTRP
Built to Order





Extra Wide Aluminium Loading Ramps (2500x460x10000kg)

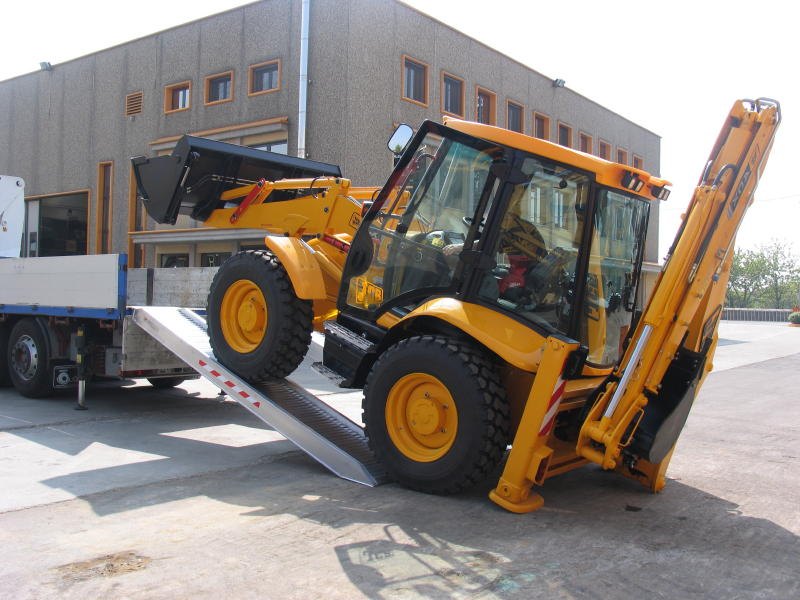

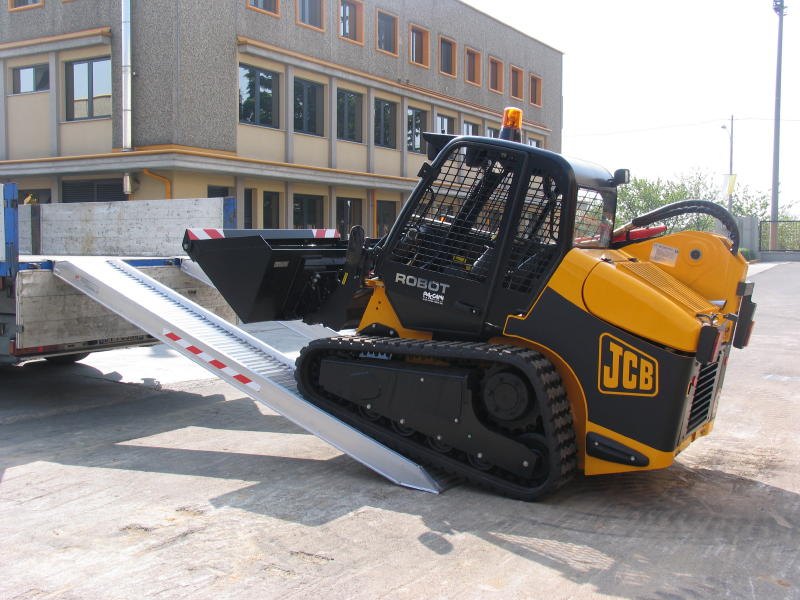

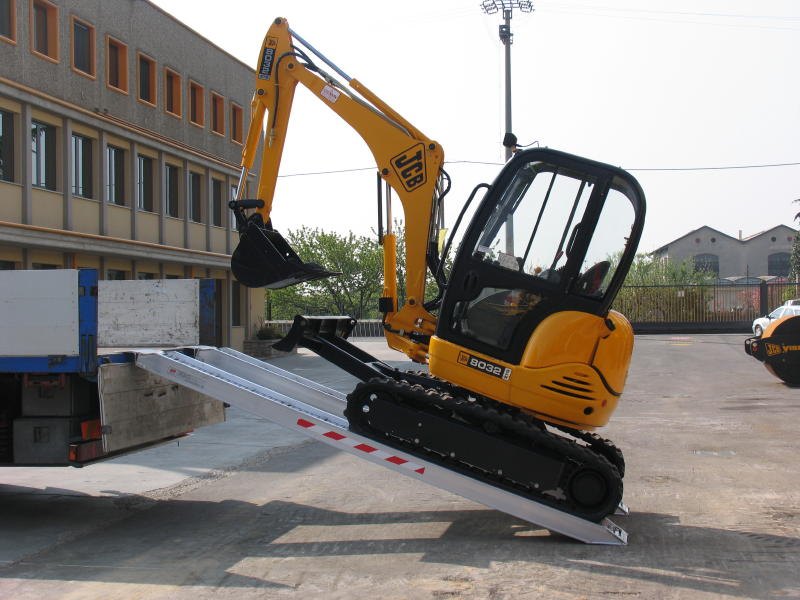

460mm wide x 2500mm long, with a 150mm profile thickness. Featuring a maximum capacity of 10,000kg, this ramp is ideal for use as a plant ramp, digger ramp, or telehandler ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Some of our best selling medium to heavy duty plant ramp, the TRP150 Series core profile thickness is 150mm. The TRP150 Series has a width of 460mm. They feature a capacity of up to 10000kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.

On the TRP150T series the minimum width of tracks/wheels is 300mm. These Ramps are not designed for use over a 30% gradient

  • These ramps are available both with and without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Quotes for bespoke ramps can be supplied on request
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP150/25LTRP
Default Connection Rest On Connection
Capacity (kg) 10000
Height of Ramps Profile (mm) 150
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 34,5
Weight Per Pair (kg) 69
Width (mm) 460
Minimum Track Width (mm) 300
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 6,870
Capacity Wheelbase 1500mm (kg) 10,000
Capacity Wheelbase 2000mm (kg) 10,000
