Aluminium Loading Ramps (2500x510x10000kg)

530mm wide x 2500mm long with a 170mm profile thickness. Featuring a maximum capacity of 8300kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 400mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

Some of our best selling heavy duty plant ramps, the TRP170 Series core profile thickness is 170mm.

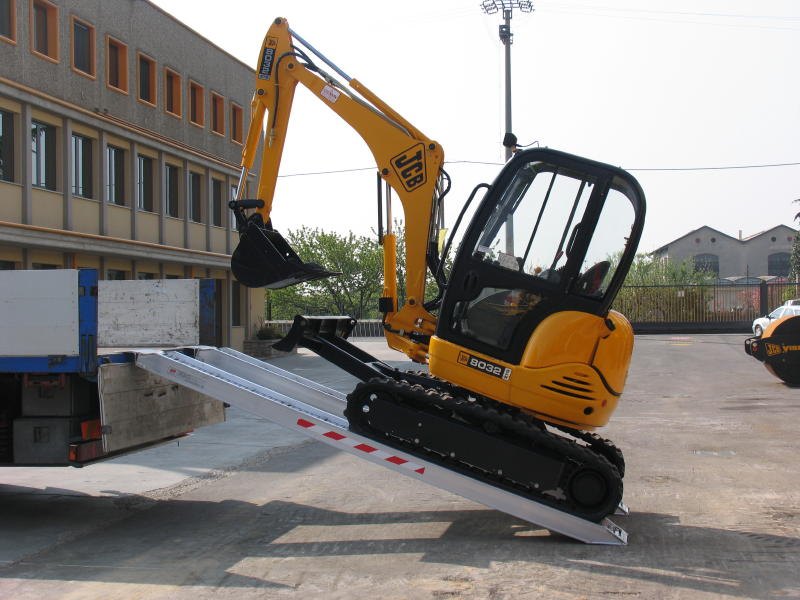

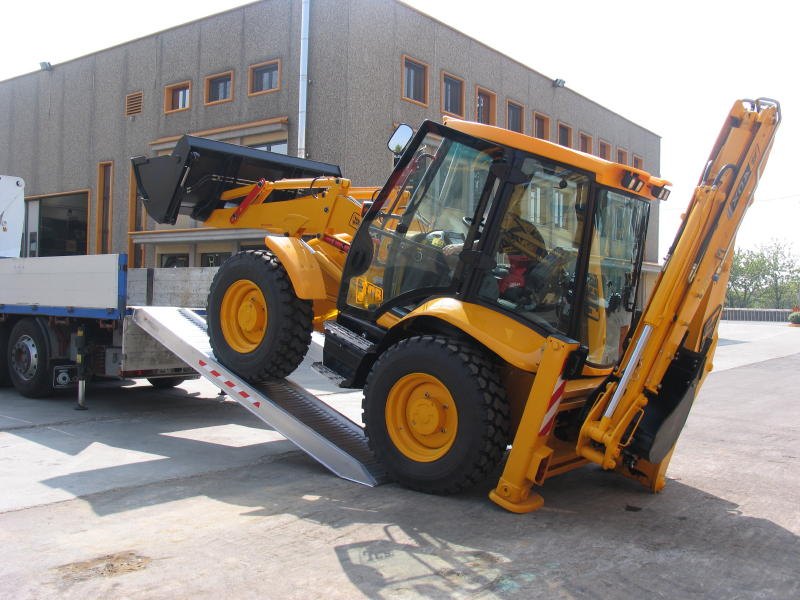

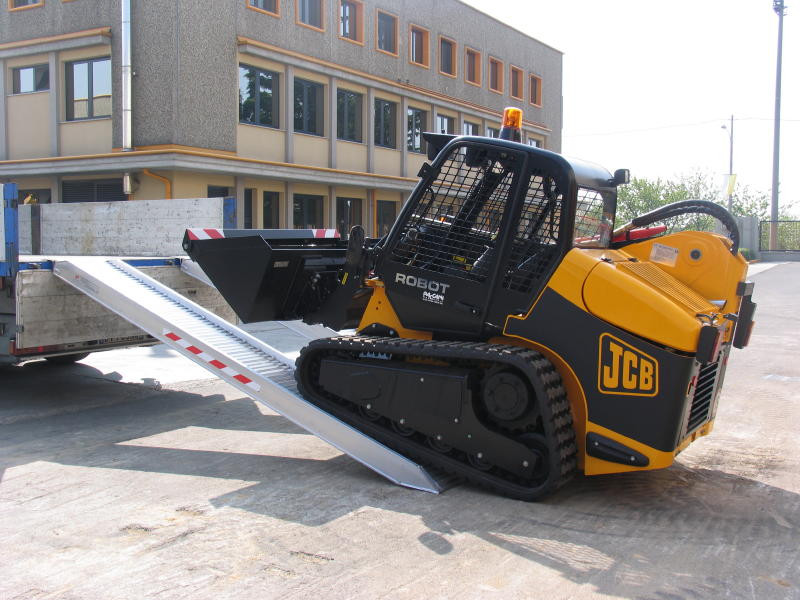

At 530mm these ramps are over half a metre wide, feature a capacity of up to 8300kg and are ideal for use as plant ramps, digger ramps and tele-handlers.

On the TRP170 series the minimum width of tracks/wheels is 400mm.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified
  • Quotes for bespoke ramps can be supplied on request

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP170/25
Default ConnectionRest On Connection
Capacity (kg)10000
Height of Ramps Profile (mm)170
Length (mm)2500
Max Load Height (mm)750
Min. Load Height (mm)600
Weight per Ramp (kg)38
Weight Per Pair (kg) 76
Width (mm)510
Minimum Track Width (mm)200
Maximum Track Width (mm)430
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)9600
Capacity Wheelbase 1500mm (kg)10000
Capacity Wheelbase 2000mm (kg)10000
