Aluminium Loading Ramps (4000x510x8870kg)

510mm wide x 4000mm long with a 185mm profile thickness. Featuring a maximum capacity of 8870kg, this heavy duty ramp is ideal for use as a plant ramp, digger ramp and for tele-handlers. Please note the minimum track width is 200mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)4000
Width (mm)510
Max. Load Height (mm)1200
Weight Per Ramp (kg)63.5
Weight Per Pair (kg)127
Capacity (kg)8870
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£2,220.00 £1,850.00
SKU
TRP186/40
Built to Order
Talk to The Ramp People's sales team

Some of our best selling heavy duty plant ramps, the TRP186 Series core profile thickness is 185mm.

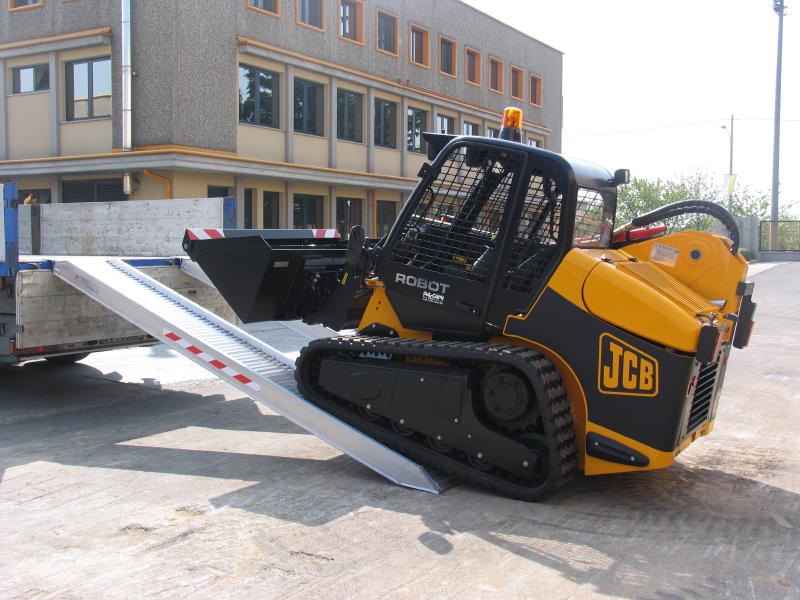

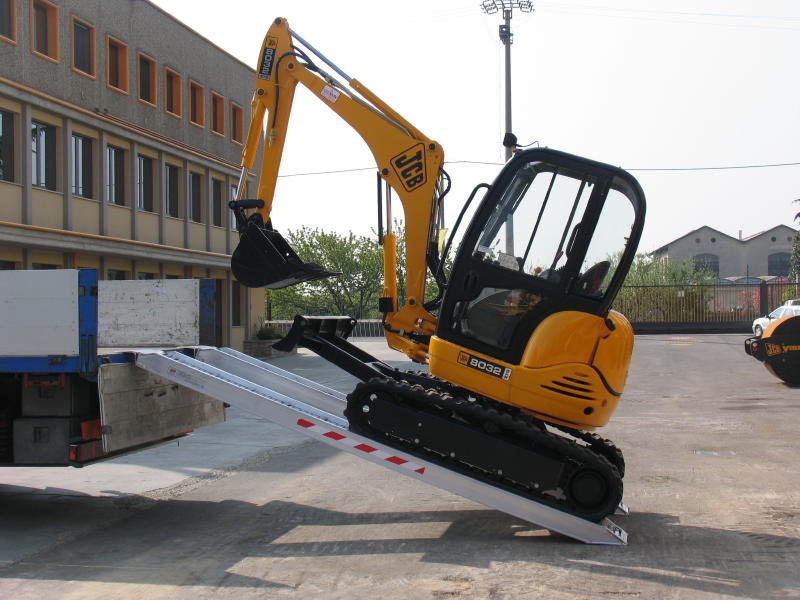

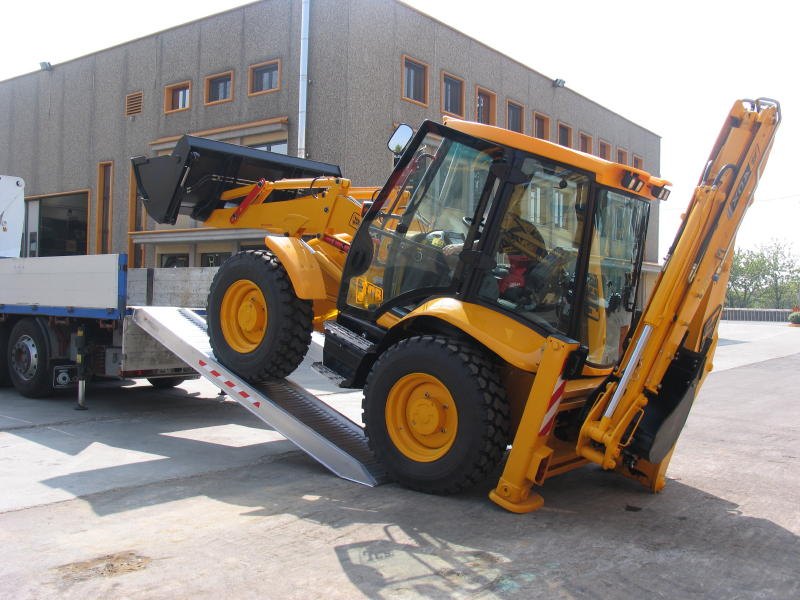

At 510mm these ramps are over half a metre wide, feature a capacity of up to 8870kg and are ideal for use as plant ramps, digger ramps and tele-handlers

On the TRP186 series the minimum width of tracks/wheels is 200mm.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Quotes for bespoke ramps can be supplied on request
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP186/40
Default Connection Rest On Connection
Capacity (kg) 8870
Height of Ramps Profile (mm) 185
Length (mm) 4000
Max Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight per Ramp (kg) 63.5
Weight Per Pair (kg) 127
Width (mm) 510
Minimum Track Width (mm) 200
Maximum Track Width (mm) 430
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 5910
Capacity Wheelbase 1500mm (kg) 7100
Capacity Wheelbase 2000mm (kg) 8870
