£4,140.00 £3,450.00
SKU
TRP231/55
Built to Order

Pay by Bank

Aluminium Loading Ramps (5500x580x8570kg)

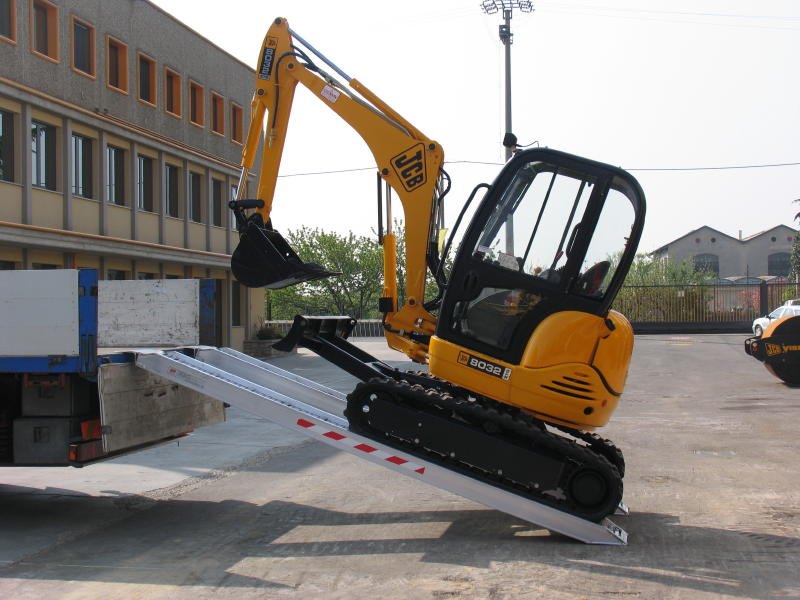

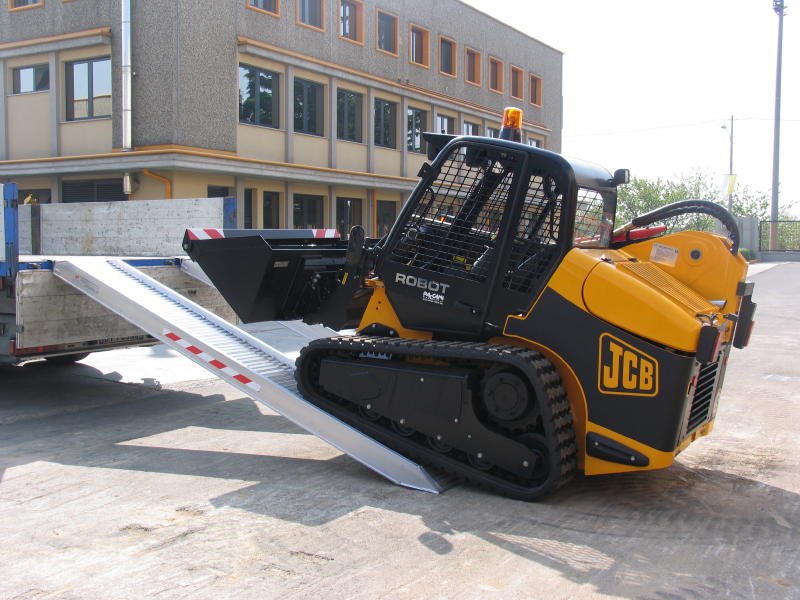

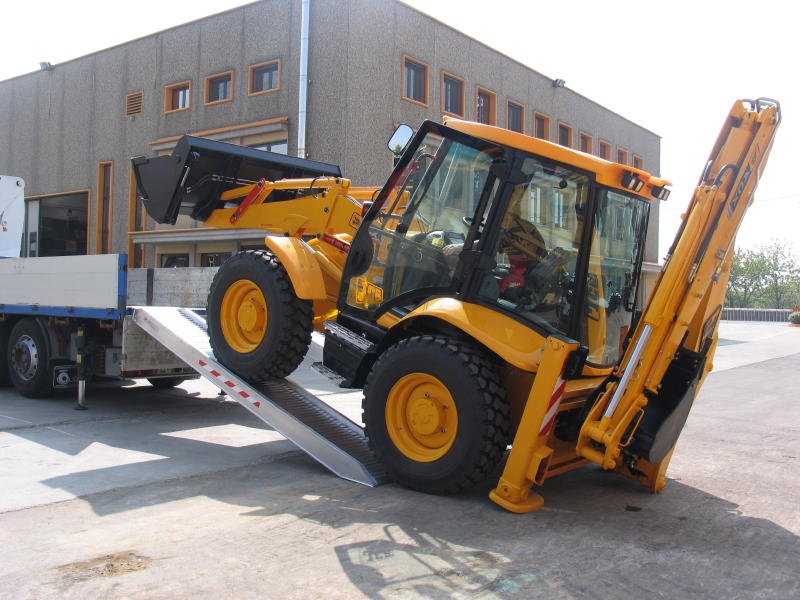

580mm wide x 5500mm long, with a 230mm profile thickness. Featuring a maximum capacity of 8570kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 300mm.

Custom built sizes are available on request. Price and capacity stated is for the PAIR.

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

One of our two heaviest duty ramps from our standard range. The TRP231 Series core profile thickness is 230mm.
At 580mm these ramps are over half a metre wide, feature a capacity of up to 8570kg and are ideal for use as industrial plant ramps and as heavy duty commercial ramps.

On the TRP231 series the minimum width of tracks/wheels is 300mm.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Quotes for bespoke ramps can be supplied on request
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP231/55
Default ConnectionRest On Connection
Capacity (kg)8570
Height of Ramps Profile (mm)230
Length (mm)5500
Max Load Height (mm)1650
Min. Load Height (mm)1500
Weight per Ramp (kg)120.5
Weight Per Pair (kg) 241
Width (mm)580
Minimum Track Width (mm)300
Maximum Track Width (mm)480
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)6670
Capacity Wheelbase 1500mm (kg)7500
Capacity Wheelbase 2000mm (kg)8570
