Aluminium Loading Ramps Extra Wide (2500x500x2000kg)

500mm wide x 2500mm long, with a 65mm profile thickness. Featuring a maximum capacity of 2000kg, this ramp is ideal for use as a car ramp or lightweight plant ramp. Please note the minimum track width is 300mm. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)2500
Width (mm)500
Max. Load Height (mm)750
Weight Per Ramp (kg)18,5
Weight Per Pair (kg)37
Capacity (kg)2000
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£708.00 £590.00
Built to Order
Talk to The Ramp People's sales team

The TRP65L Series has a core profile thickness of 65mm and a width of 500mm. On the TRP65L Series the minimum width of tracks/wheels is 300mm.

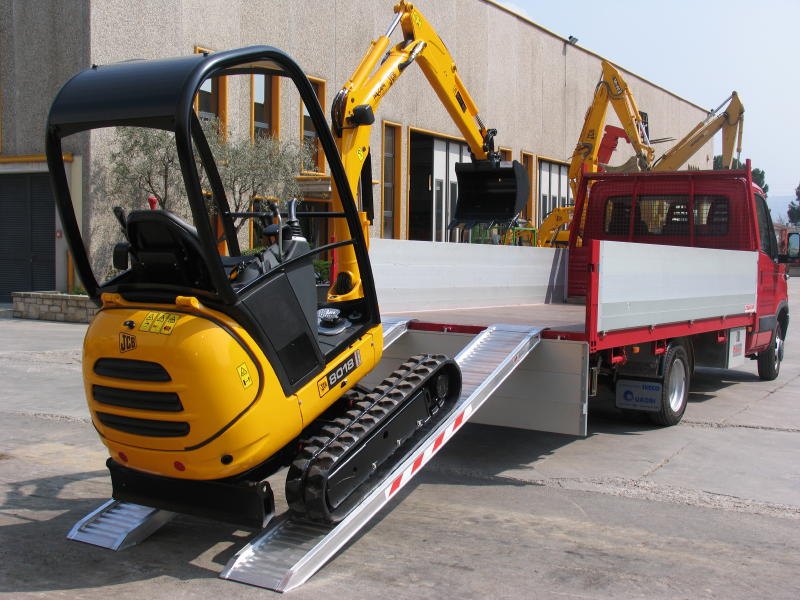

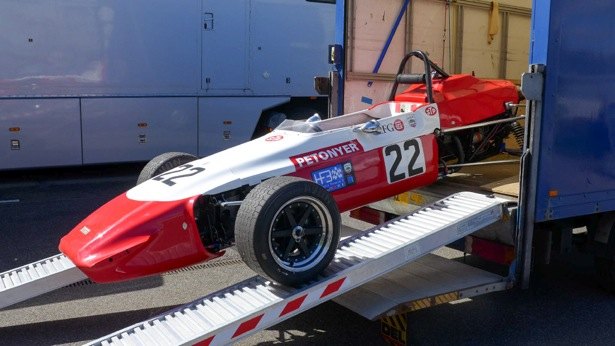

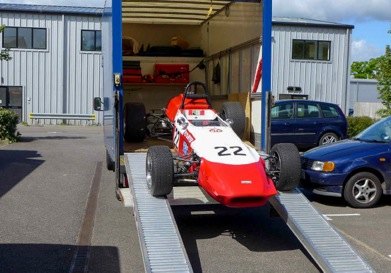

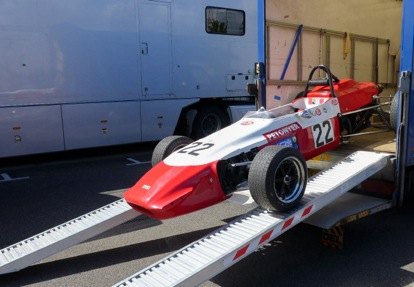

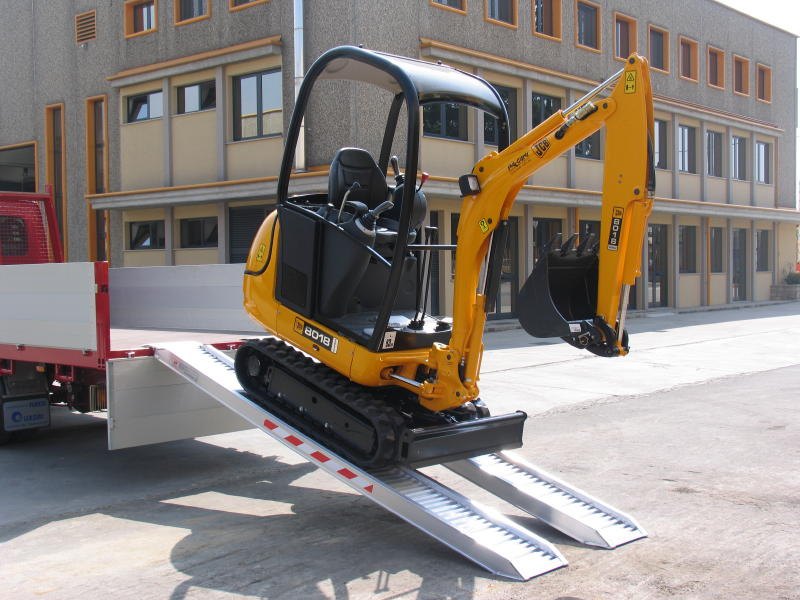

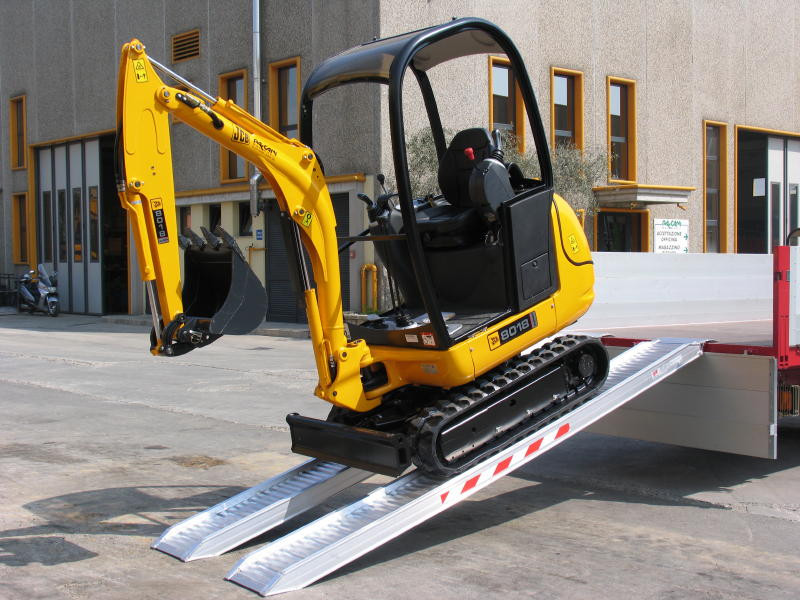

They feature a capacity of up to 2000kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Default Connection Rest On Connection
Capacity (kg) 2000
Height of Ramps Profile (mm) 65
Length (mm) 2500
Max Load Height (mm) 750
Min. Load Height (mm) 600
Weight per Ramp (kg) 18,5
Weight Per Pair (kg) 37
Width (mm) 500
Minimum Track Width (mm) 300
Maximum Track Width (mm) 420
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1330
Capacity Wheelbase 1250mm (kg) 1600
Capacity Wheelbase 1500mm (kg) 2000
