£1,224.00
£1,020.00
SKU
TRP74/45
Built to Order
Aluminium Loading Ramps (4500x300x830kg)

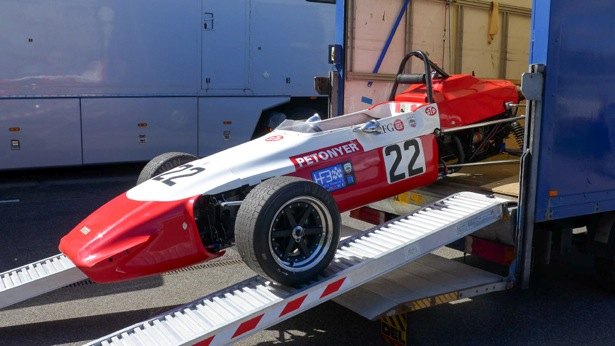

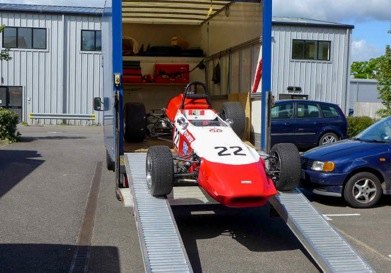

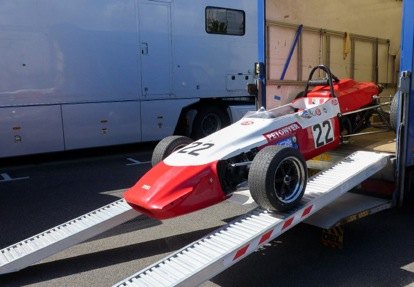

300mm wide x 4500mm long, with an 75mm profile thickness. Featuring a maximum capacity of 830kg, this ramp is ideal for use as a car ramp or lightweight plant ramp. Please note the minimum track width is 150mm.
Price and capacity stated is for the PAIR.
Description
The TRP74 Series has a core profile thickness is 75mm and a width of 300mm. On the TRP74 Series the minimum width of tracks/wheels is 150mm.
They feature a capacity of up to 830kg and are ideal for use as car ramps or lightweight plant ramps.
Designed for a maximum gradient of 30%
- These ramps are available both with and without edges, the default is however without edges
- Four different connection options available, however the default connection is the rest on connection which is a popular choice for flatbed vehicles and tipper trucks. For beaver tail trailers, a hook connection is normally recommended
- Foot of the alloy ramp is cut for the load height to ensure smooth entry onto the ramp

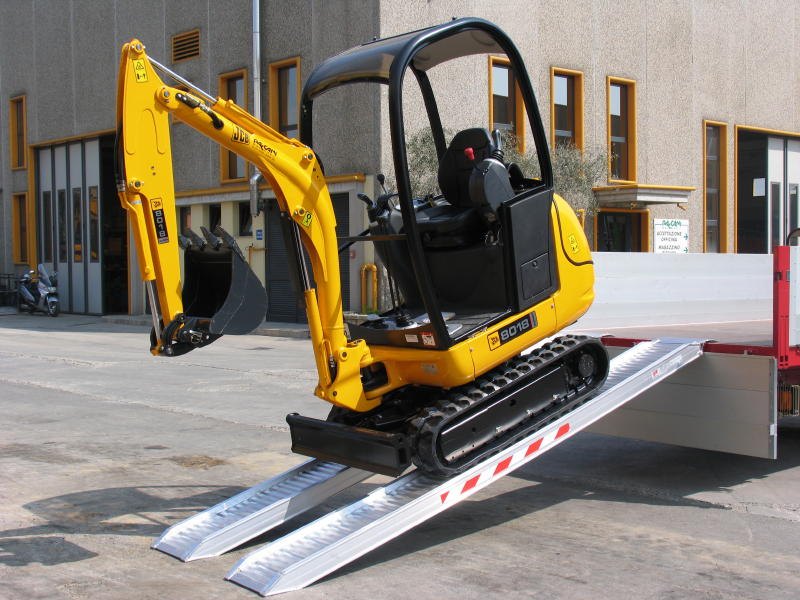

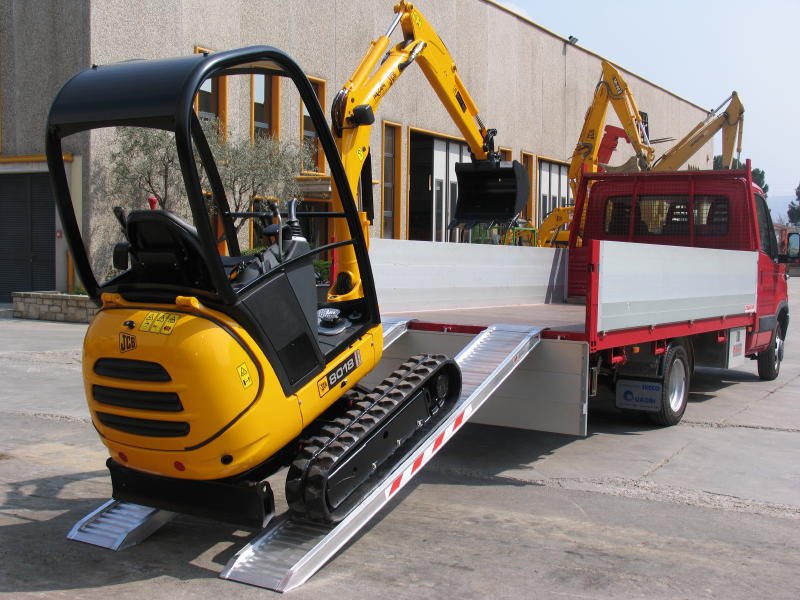

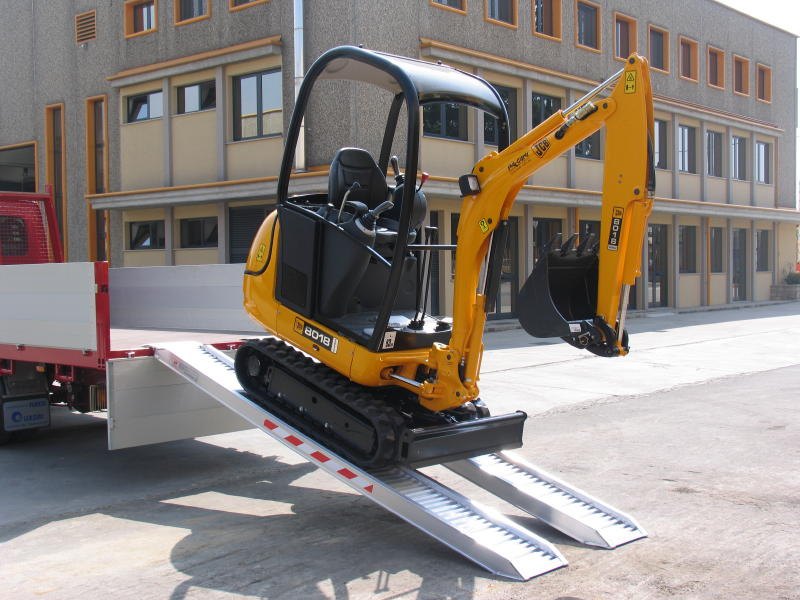

- Designed for loading tracked plant machinery and vehicles including diggers, tractors, excavators and ride-on mowers. Suitable for professional use, popular within the construction and landscaping industries.
- Customisations available including custom load heights, custom sizes and nylon handles
- Made in Europe
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Quotes for bespoke ramps can be supplied on request
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
Details
SKU | TRP74/45 |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 830 |
Height of Ramps Profile (mm) | 75 |
Length (mm) | 4500 |
Max Load Height (mm) | 1350 |
Min. Load Height (mm) | 1200 |
Weight per Ramp (kg) | 25.5 |
Weight Per Pair (kg) | 51 |
Width (mm) | 300 |
Minimum Track Width (mm) | 150 |
Maximum Track Width (mm) | 220 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Not Solid Wheels | Yes |
Capacity Wheelbase 1000mm (kg) | 710 |
Capacity Wheelbase 1250mm (kg) | 770 |
Capacity Wheelbase 1500mm (kg) | 830 |
