£204.00 £170.00
SKU
TRP-GDT5X125-L
Built to Order

Pay by Bank

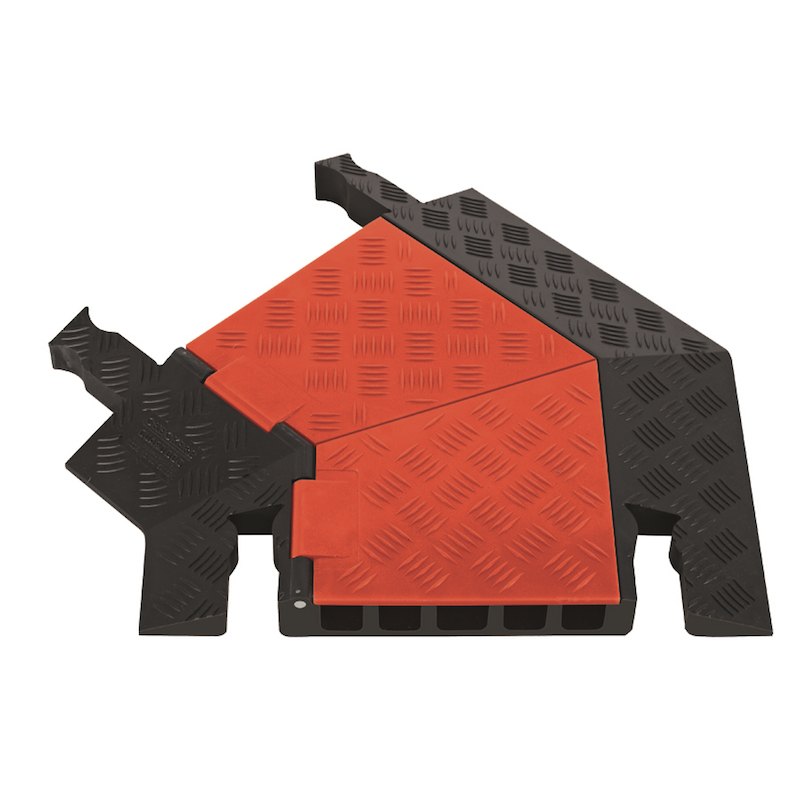

Checkers Guard Dog - 5 Channel Cable Protector 45 degree Corner Sections - Left, O/B

If you need to create a 45-degree turn in your cable protector system, use the 5-Channel General Purpose Guard Dog Left Turn. Offering the same level of durability as a standard 5-channel cable protector, the Left Turn protector is designed with the same hinged lid and all-weather polyurethane construction. With a modular, interlocking design, it's perfect for a wide variety of environments, including amusement parks, entertainment venues, sporting events, and most commercial and industrial applications.

Compatible with Dog Bone Connectors and designed with a 5-bar tread surface for maximum traction, this protector can, like other models of its kind, work with cables and hoses of up to 1.325" in diameter. You can even join this protector with a right turn protector to create a jog.

  • Easy to Fit
  • One Year Warranty
  • Leave Outside
Description

Guard Dog 5-Channel Cable Protector with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

  • Suitable for the Guard Dog 5-Channel Cable Protector
  • Creates a 45 degree left turn
  • Protects cables and hoses up to 1.325" outside dia.
  • Dog Bone® connectors
  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Join left and right turns to create a jog
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Details
SKUTRP-GDT5X125-L
Capacity (kg)9,526
Height (mm)48
Length (mm)622
Weight (kg)5
Width (mm)502
One Year WarrantyYes
Easy to FitYes
Leave OutsideYes
Cable Protector ColorOrange/Black
Channel Width (mm)34
Channel Size (mm)34 x 33.7
Channel Height (mm)33.7
No. Channels5
Capacity per Axle (kg)9526
Capacity per Tyre (kg)4762
Operating Temperature (deg. F)70
Speedlimit (mph)10
