Aluminium Loading Ramp (3500x400x3000kg)

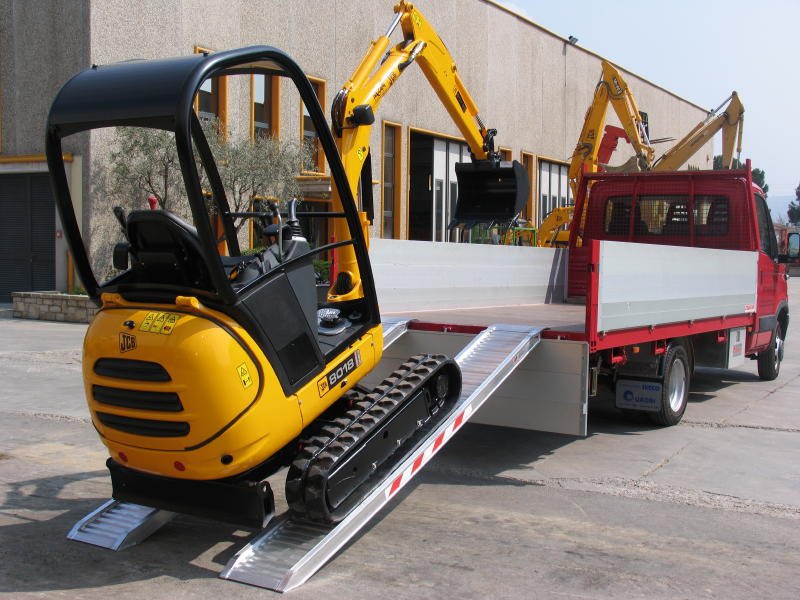

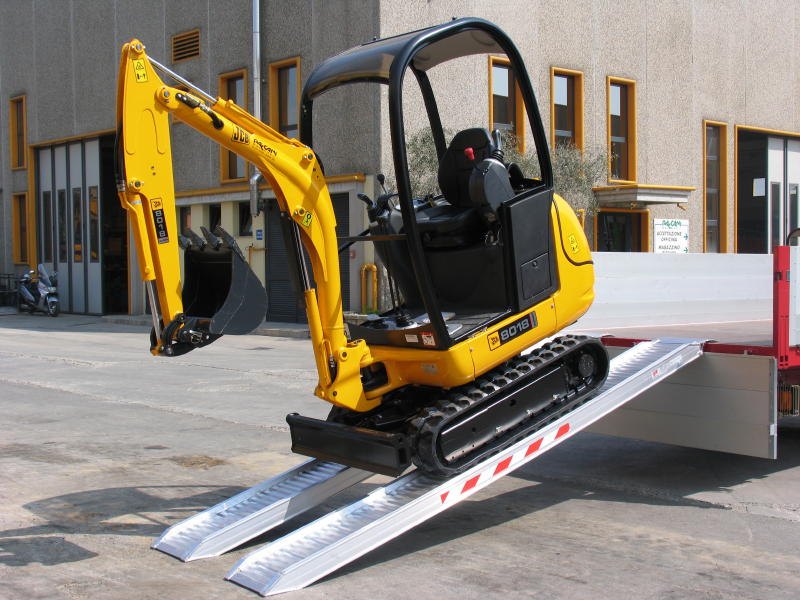

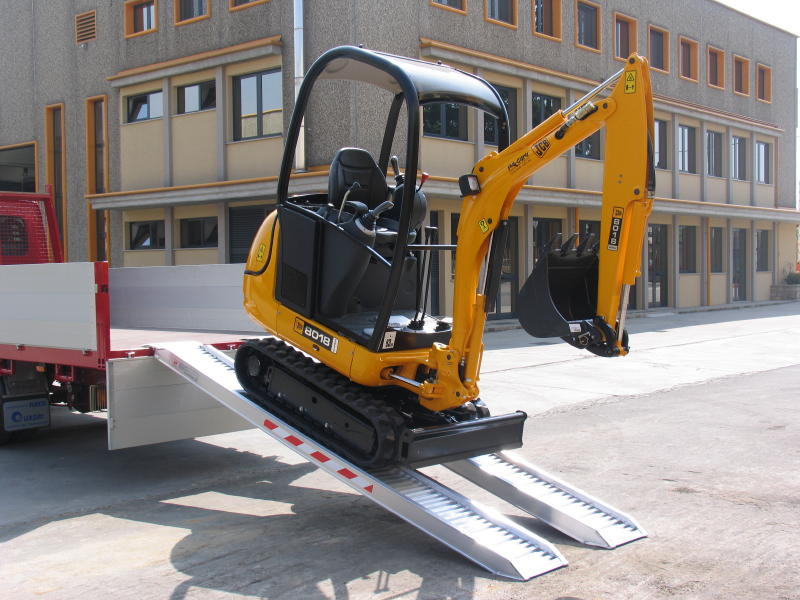

400mm wide x 3500mm long with a 115mm profile thickness. Featuring a maximum capacity of 3000kg, this ramp is ideal for use as a plant ramp or mini digger ramp. Please note the minimum track width is 200mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)3500
Width (mm)400
Max. Load Height (mm)1050
Weight Per Ramp (kg)28
Weight Per Pair (kg)56
Capacity (kg)3000
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£1,110.00 £925.00
SKU
TRP116/35L
Built to Order



Description

Some of our best selling plant ramps, the TRP116L has a core profile thickness of 115mm. Their width is 400mm. They feature a capacity of up to 3000kg and are ideal for use as plant ramps and mini digger ramps.

With a width of 400mm, a minimum track width of 200mm is recommended, the maximum track width of 320mm should not be exceeded.
These ramps are not designed for use over 30% gradient.

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Details
SKU TRP116/35L
Default Connection Rest On Connection
Capacity (kg) 3000
Height of Ramps Profile (mm) 115
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 28
Weight Per Pair (kg) 56
Width (mm) 400
Minimum Track Width (mm) 200
Maximum Track Width (mm) 320
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2000
Capacity Wheelbase 1500mm (kg) 2500
Capacity Wheelbase 2000mm (kg) 3000
