Aluminium Loading Ramps (4500x300x1050kg)

300mm wide x 4500mm long, with a 75mm profile thickness. Featuring a maximum capacity of 1050kg, this ramp is ideal on car transporters and trailers. Please note the minimum track width is 150mm. Price and capacity stated is for the PAIR.

Plant Ramps FAQ's

Length (mm)4500
Width (mm)300
Max. Load Height (mm)1350
Weight Per Ramp (kg)31
Weight Per Pair (kg)62
Capacity (kg)1050
Product Inquiry
  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
£1,134.00 £945.00
Built to Order
Talk to The Ramp People's sales team

The TRP75 Series has a core profile thickness of 75mm and a width of 300mm. On the TRP75 Series the minimum width of tracks/wheels is 150mm.

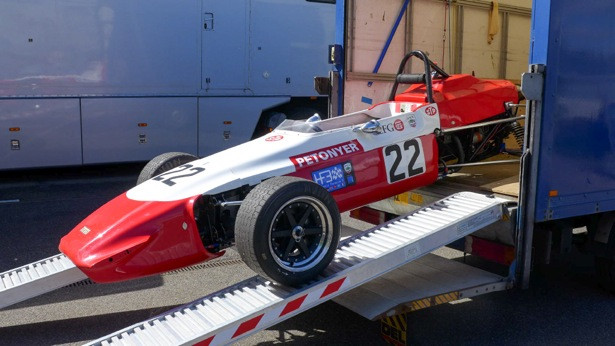

They feature a capacity of up to 1050kg and are ideal for use on car transporters and trailers.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP75/45
Default Connection Rest On Connection
Capacity (kg) 1050
Height of Ramps Profile (mm) 75
Length (mm) 4500
Min Load Height (mm) 1200
Weight per Ramp (kg) 31
Weight Per Pair (kg) 62
Width (mm) 300
Minimum Track Width (mm) 150
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 900
Capacity Wheelbase 1250mm (kg) 1000
Capacity Wheelbase 1500mm (kg) 1050
