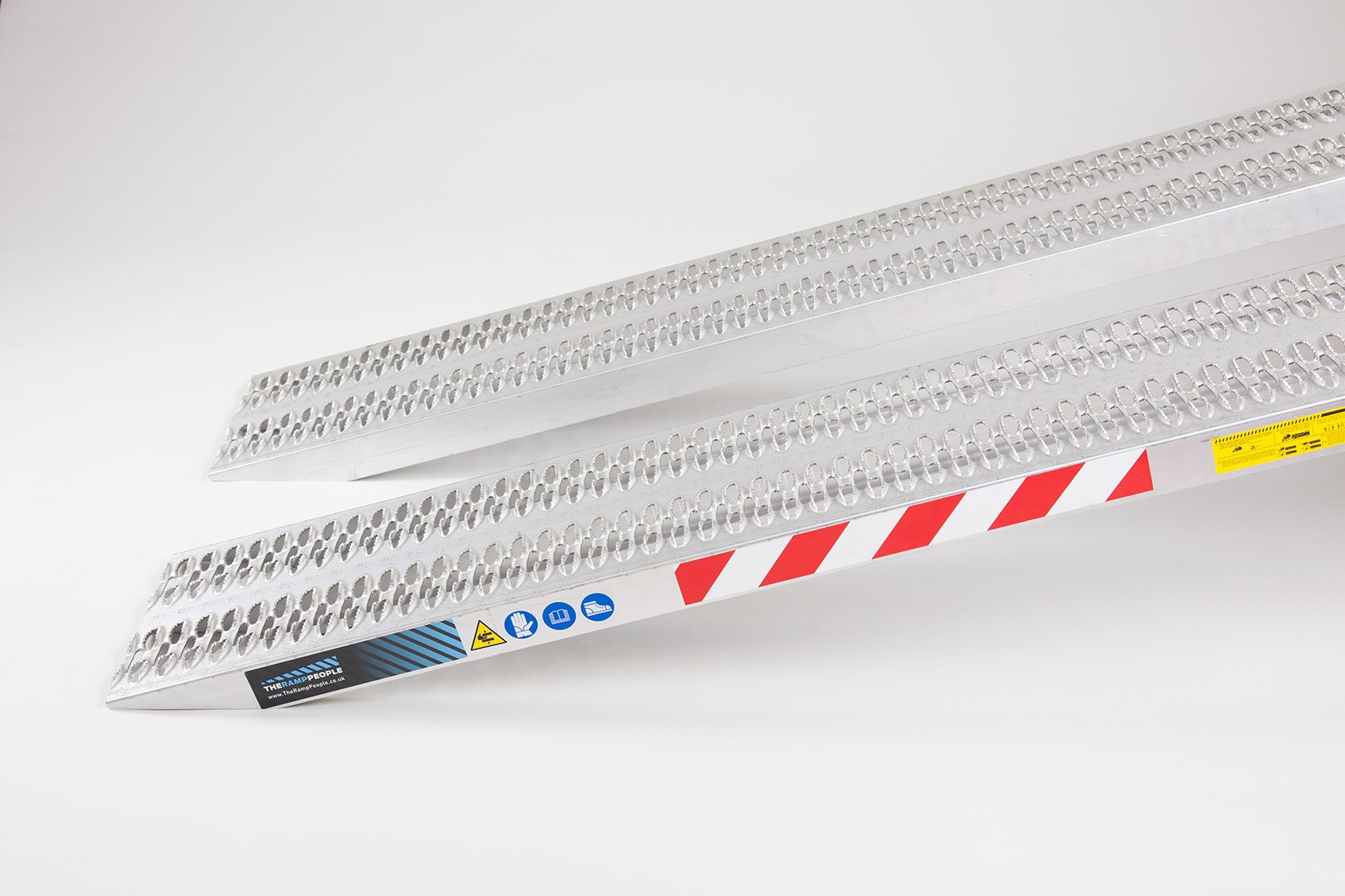

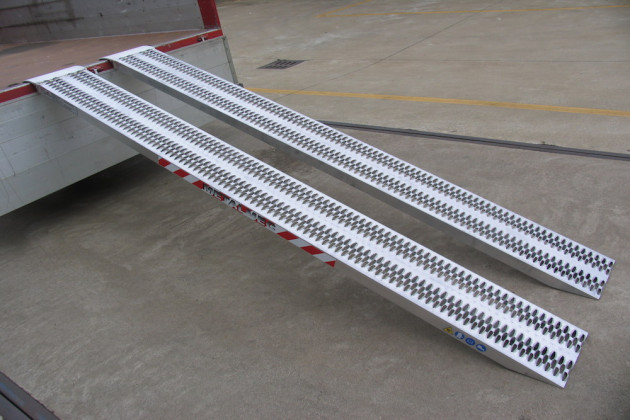

Professional Non-Folding Loading Ramps (2500x315x3400kg)

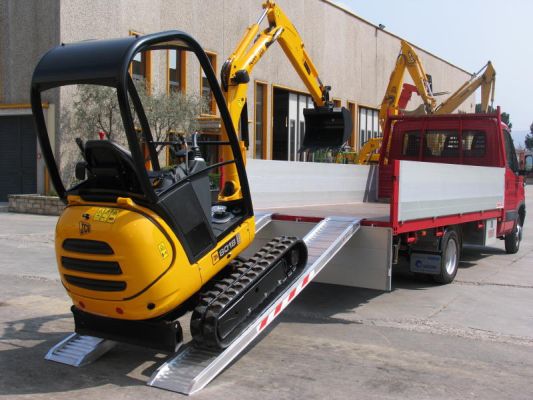

Pair of 2500mm long x 315mm wide, straight single piece aluminium ramps for professional or more frequent use than the domestic ramps. With a capacity of up to 3400kg ideal for small plant machinery.

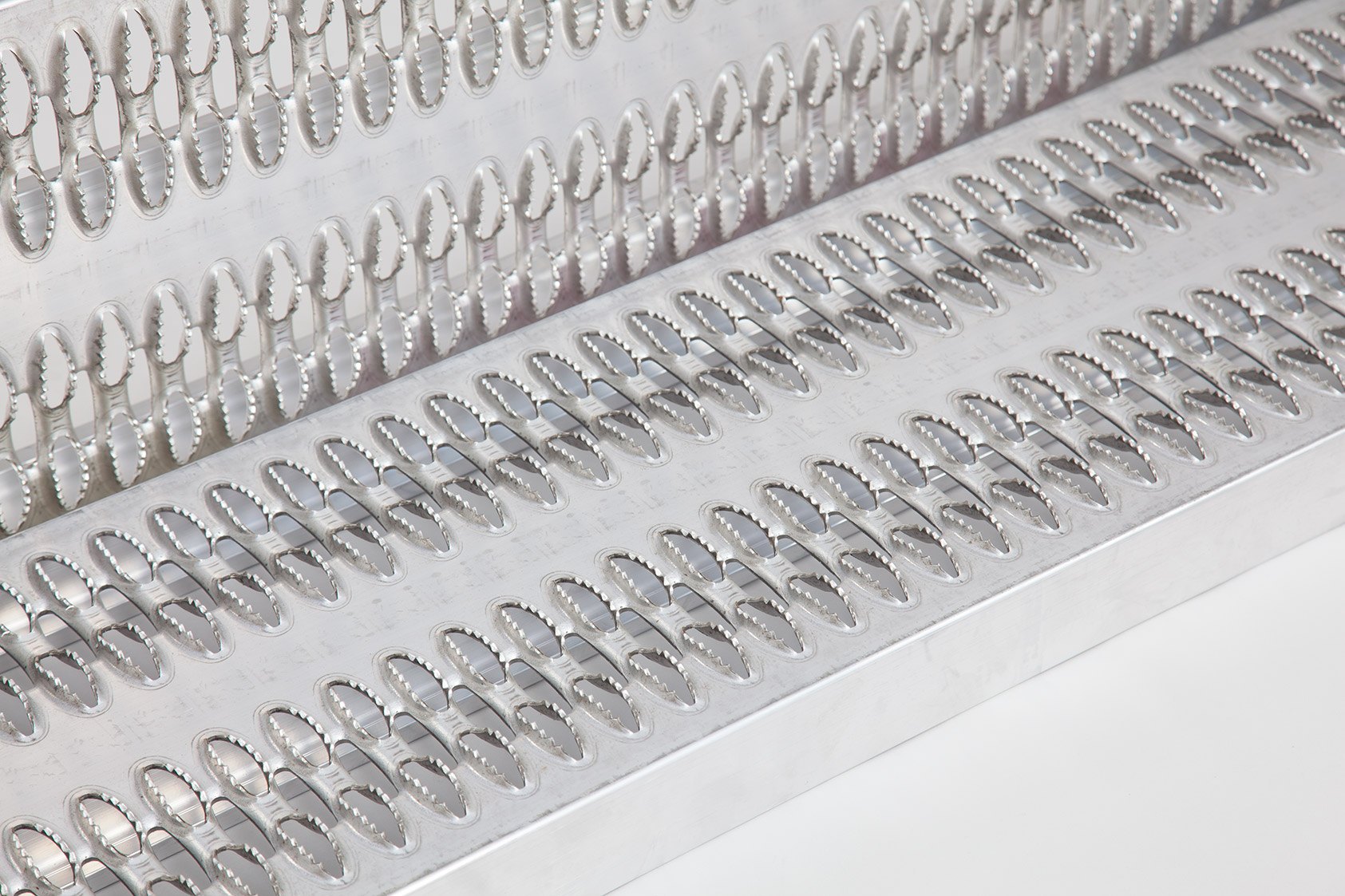

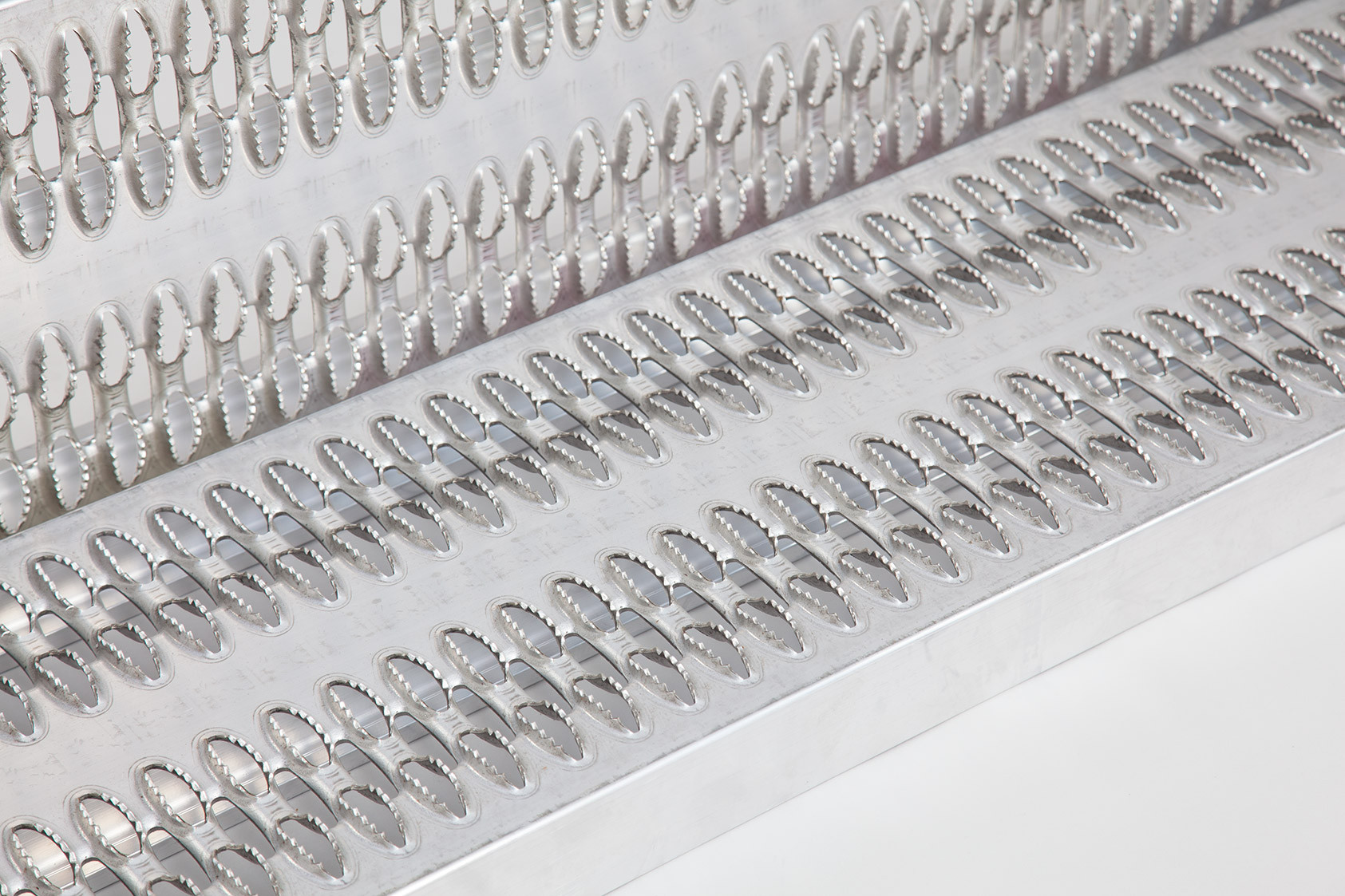

TRP grip surface provides incredible traction - please ensure your tyres have sufficient tread to avoid damage.
Professional Non-Folding Loading Ramps feature:
- Single piece ramp design, featuring zero welding

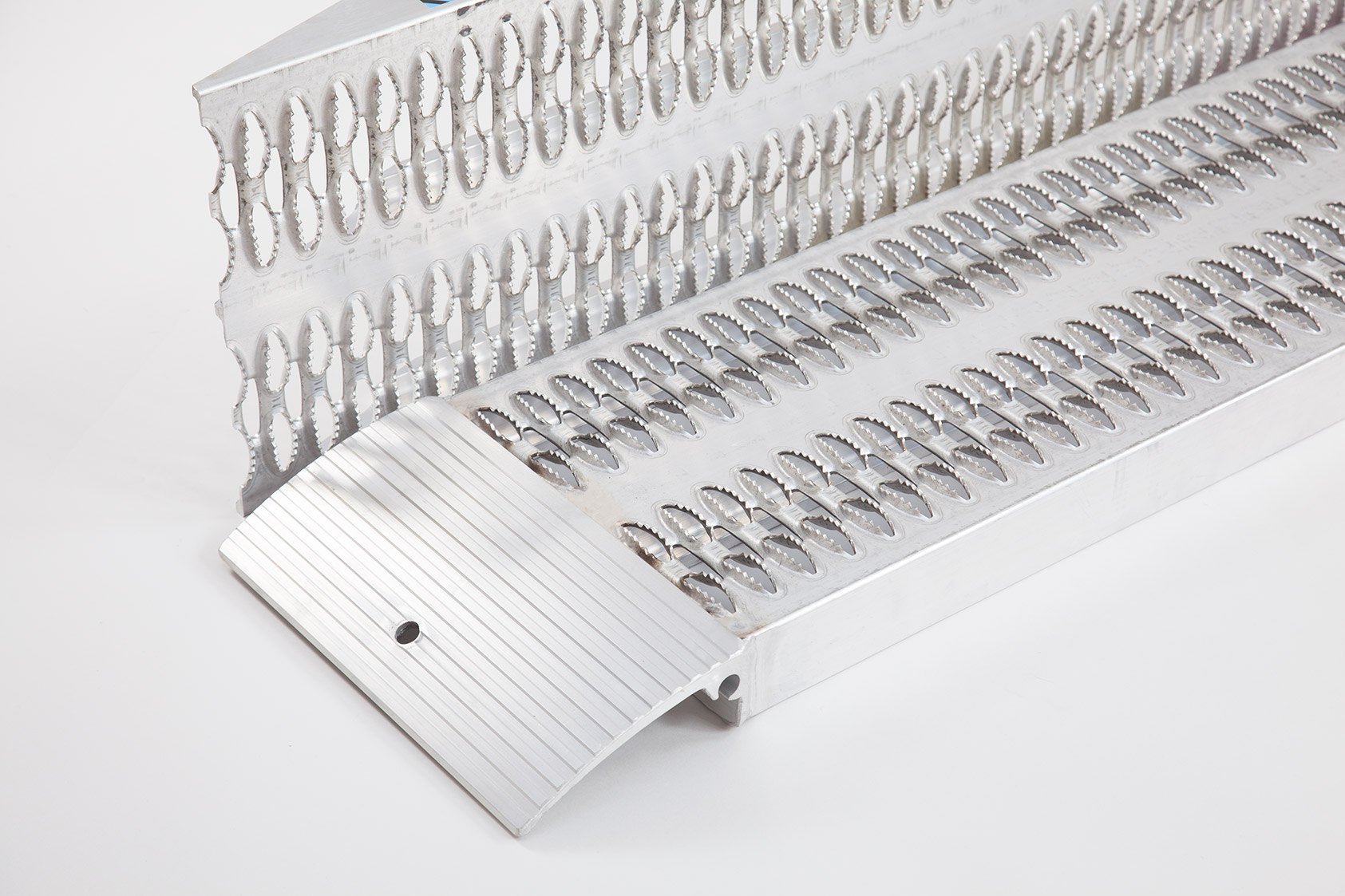

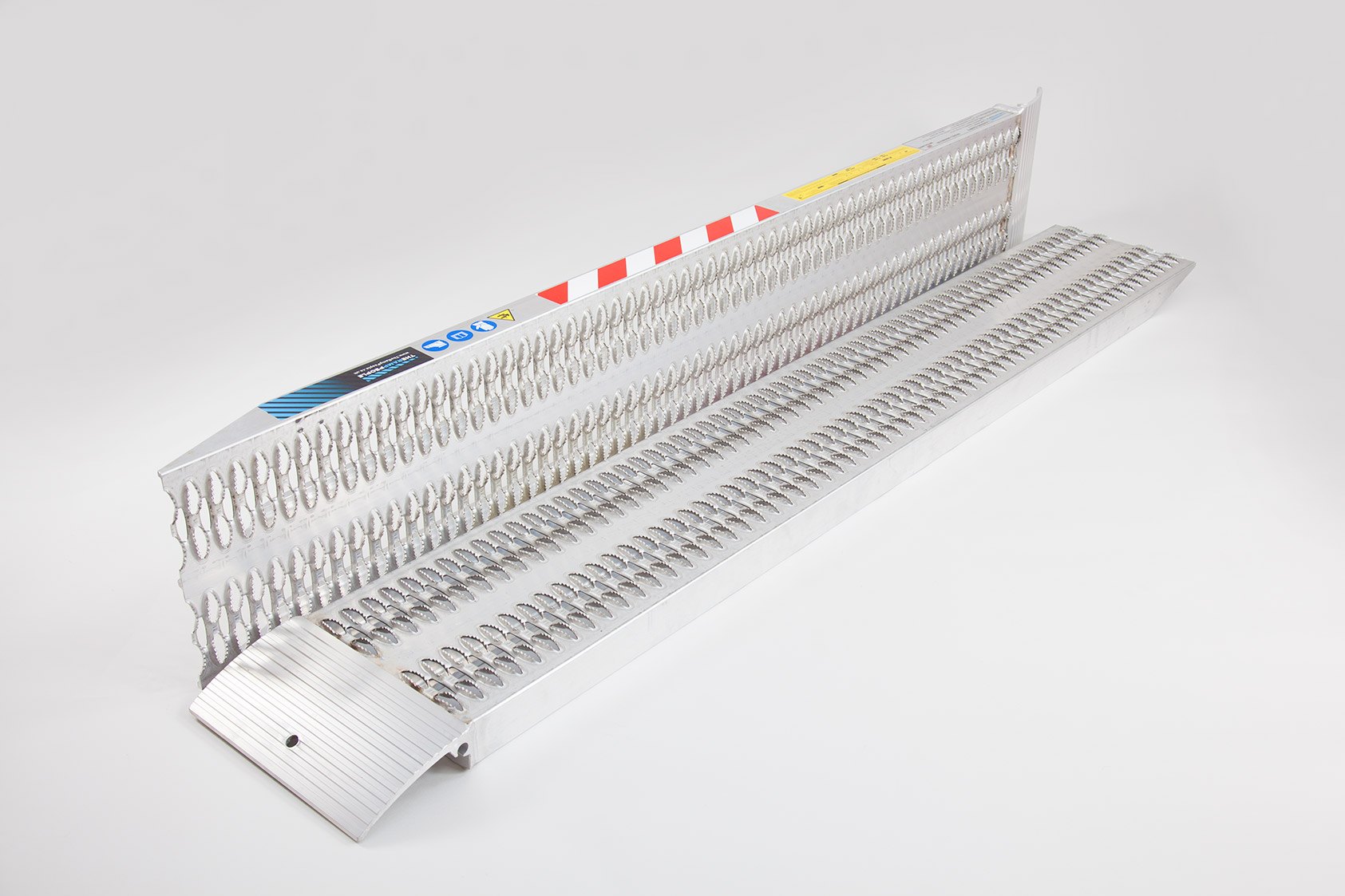

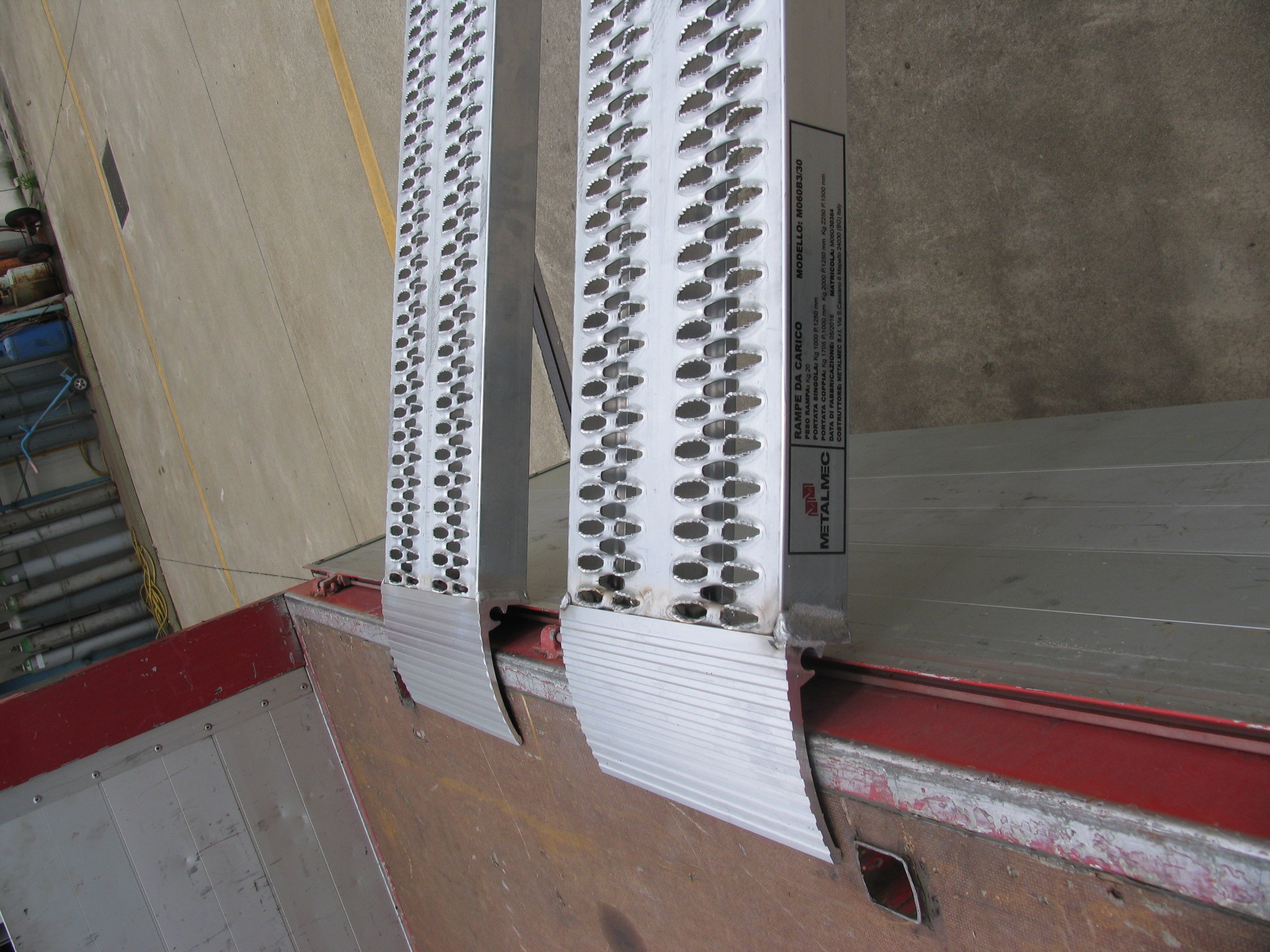

- Four different connection options available, however the default connection is the rest on connection

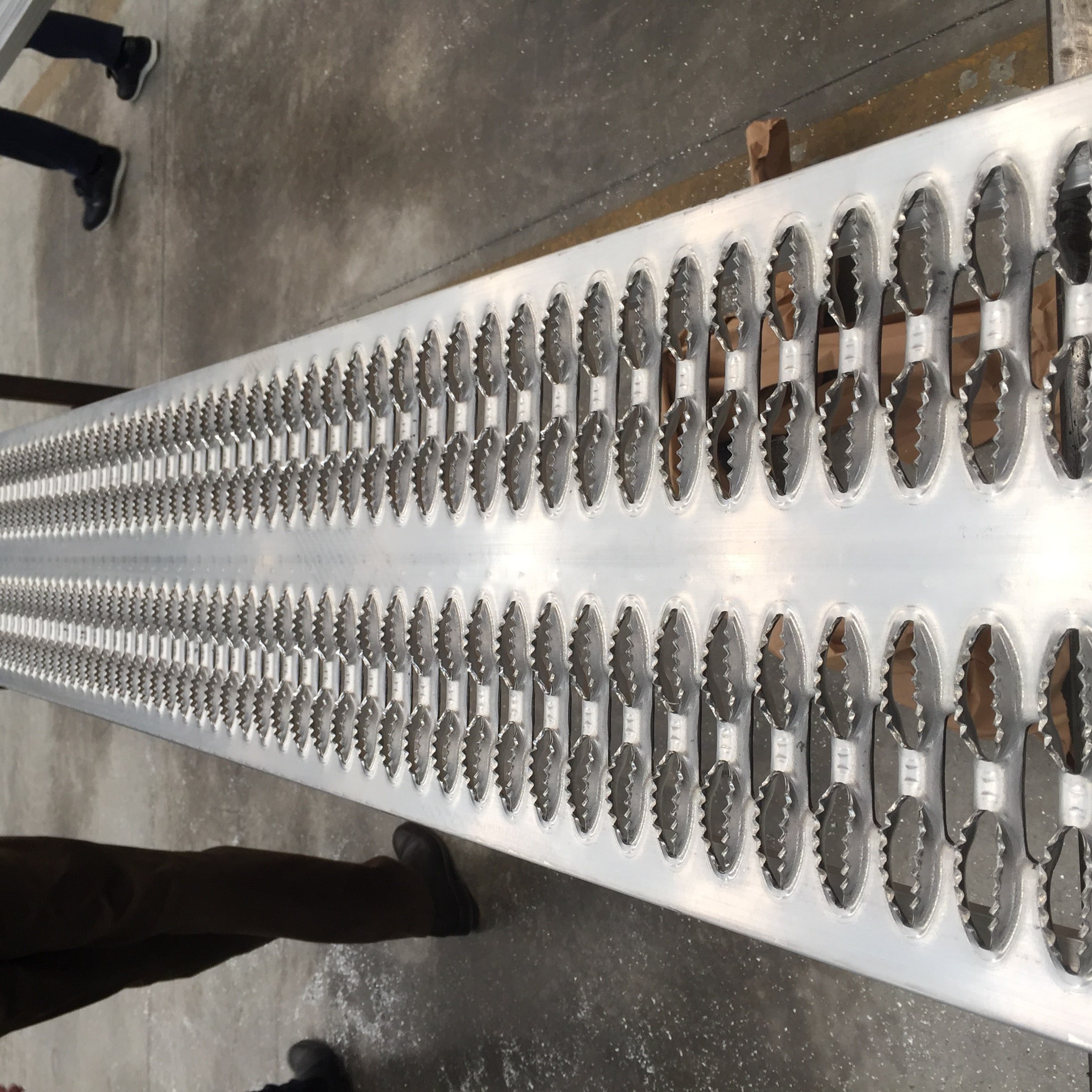

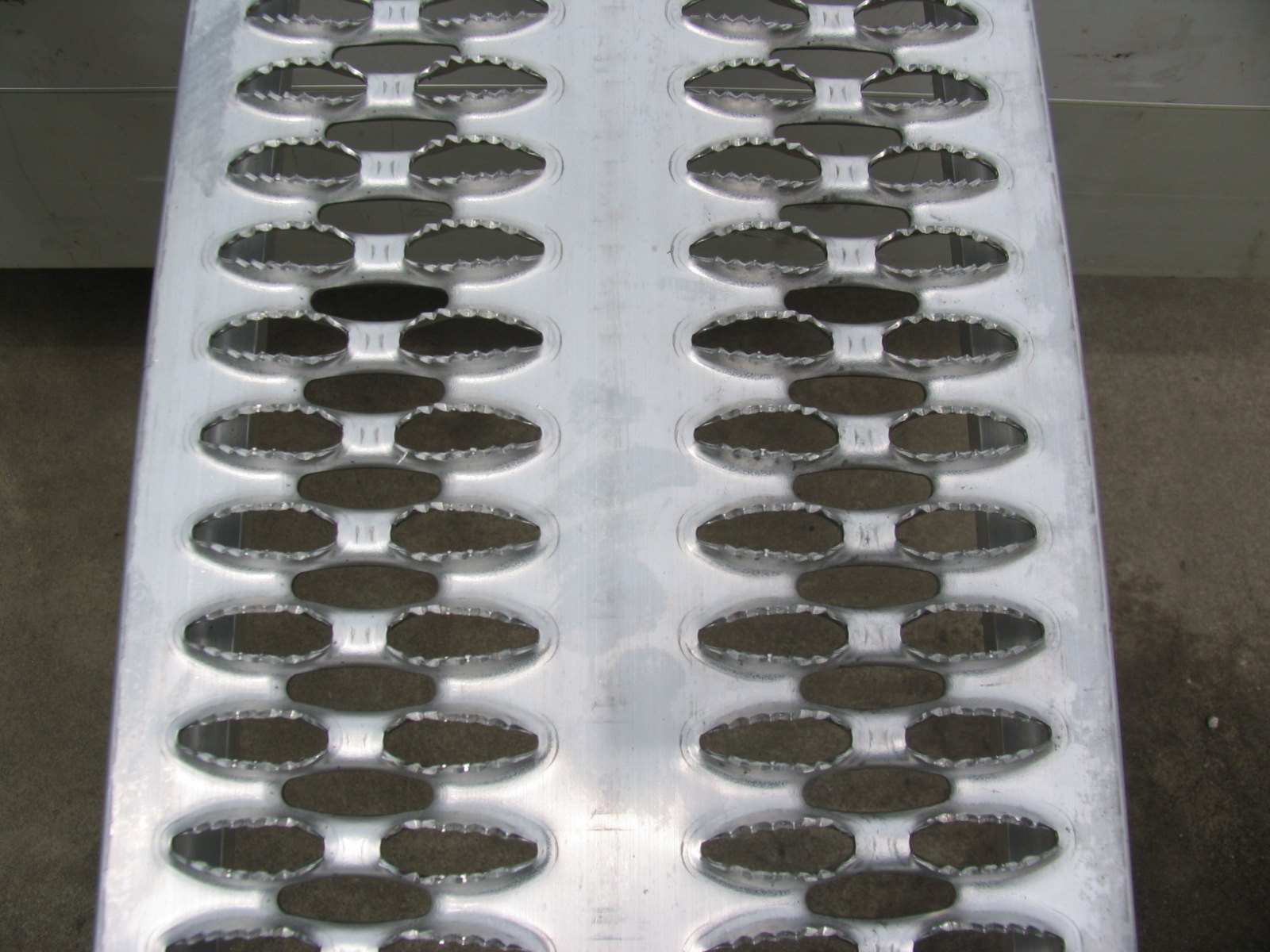

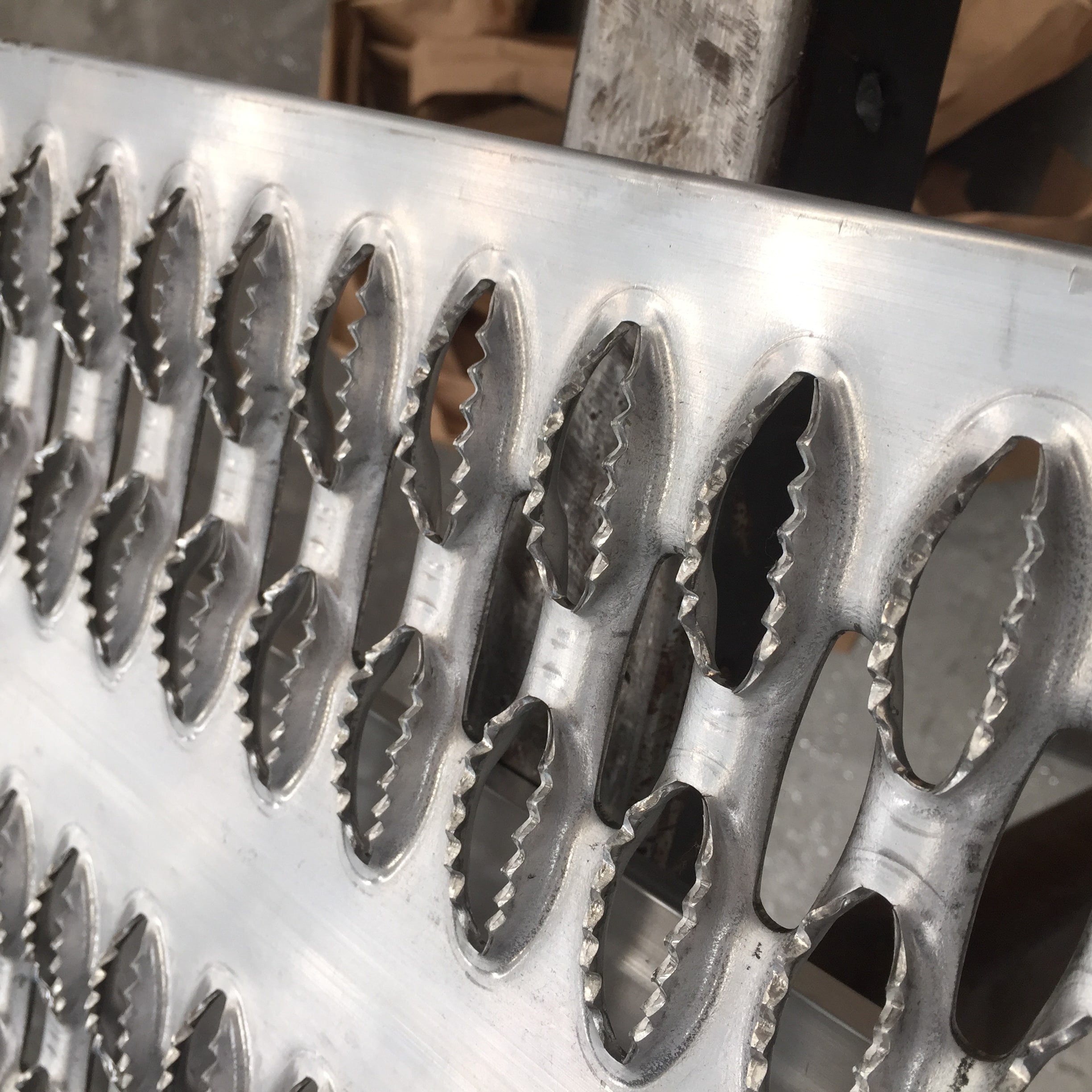

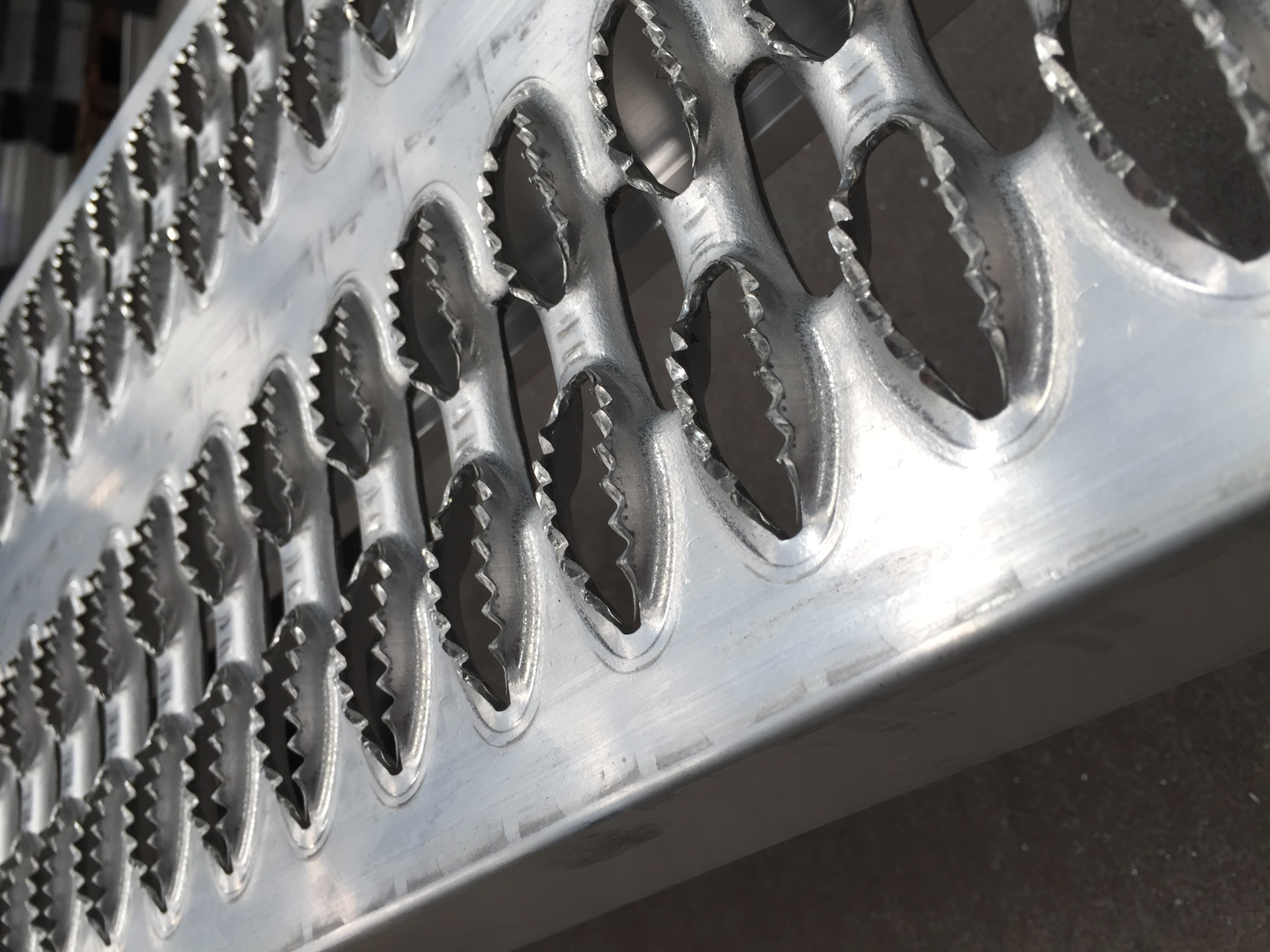

- The large holes allow dirt to drop, ensuring am optimal grip
- Height of the ramp Profile: 70mm
- R13 slip resistance, DGUV 108-003
- Strong whilst remaining relatively small

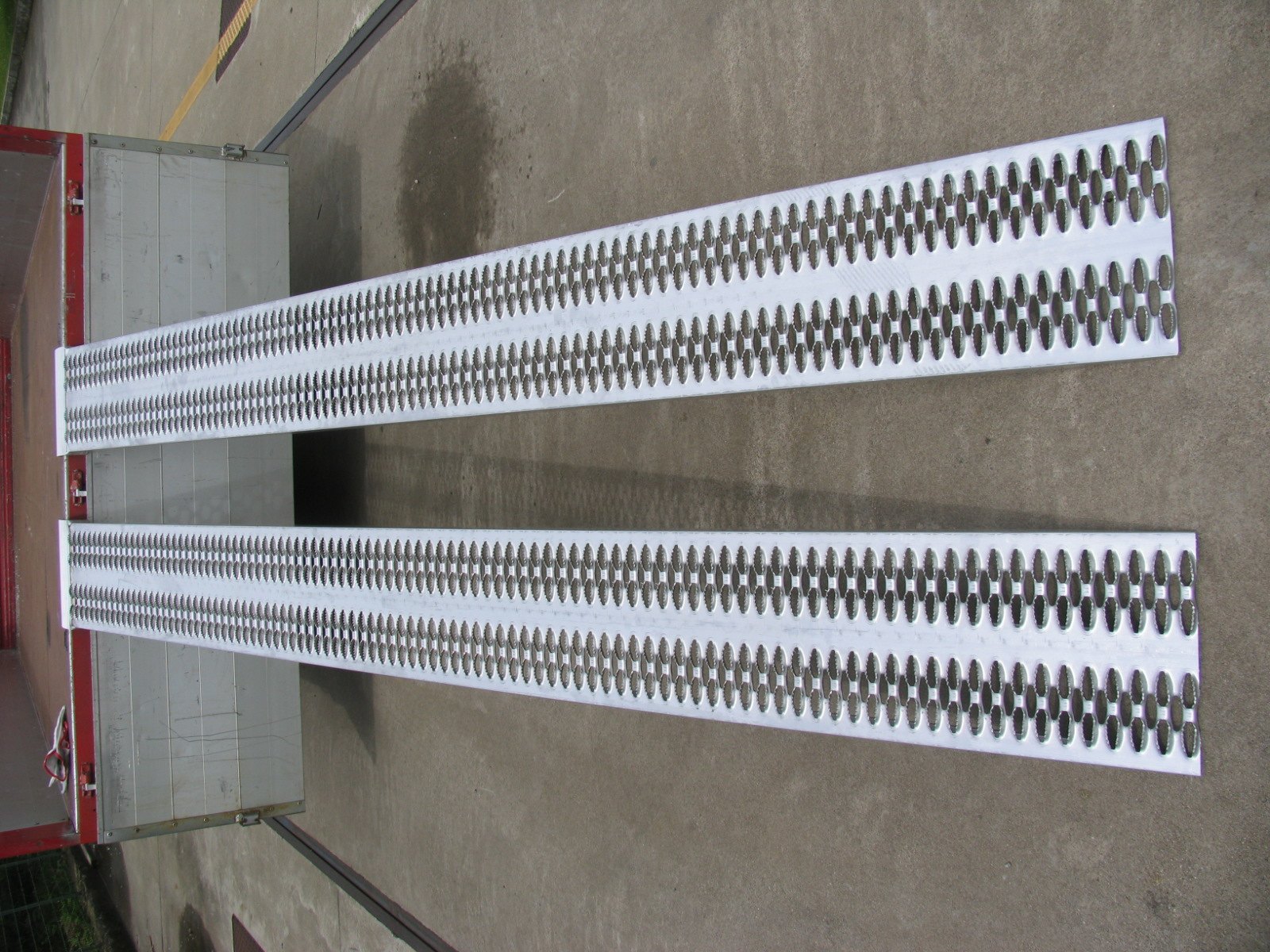

- Ramps lie flat for easy storage when not being used
- Capacity up to 3,400kg with a wheelbase of 1500mm
- Width available: 315mm
- Manufactured from lightweight aircraft grade aluminium (type 6005A)
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Lightweight for easy handling
- European manufactured

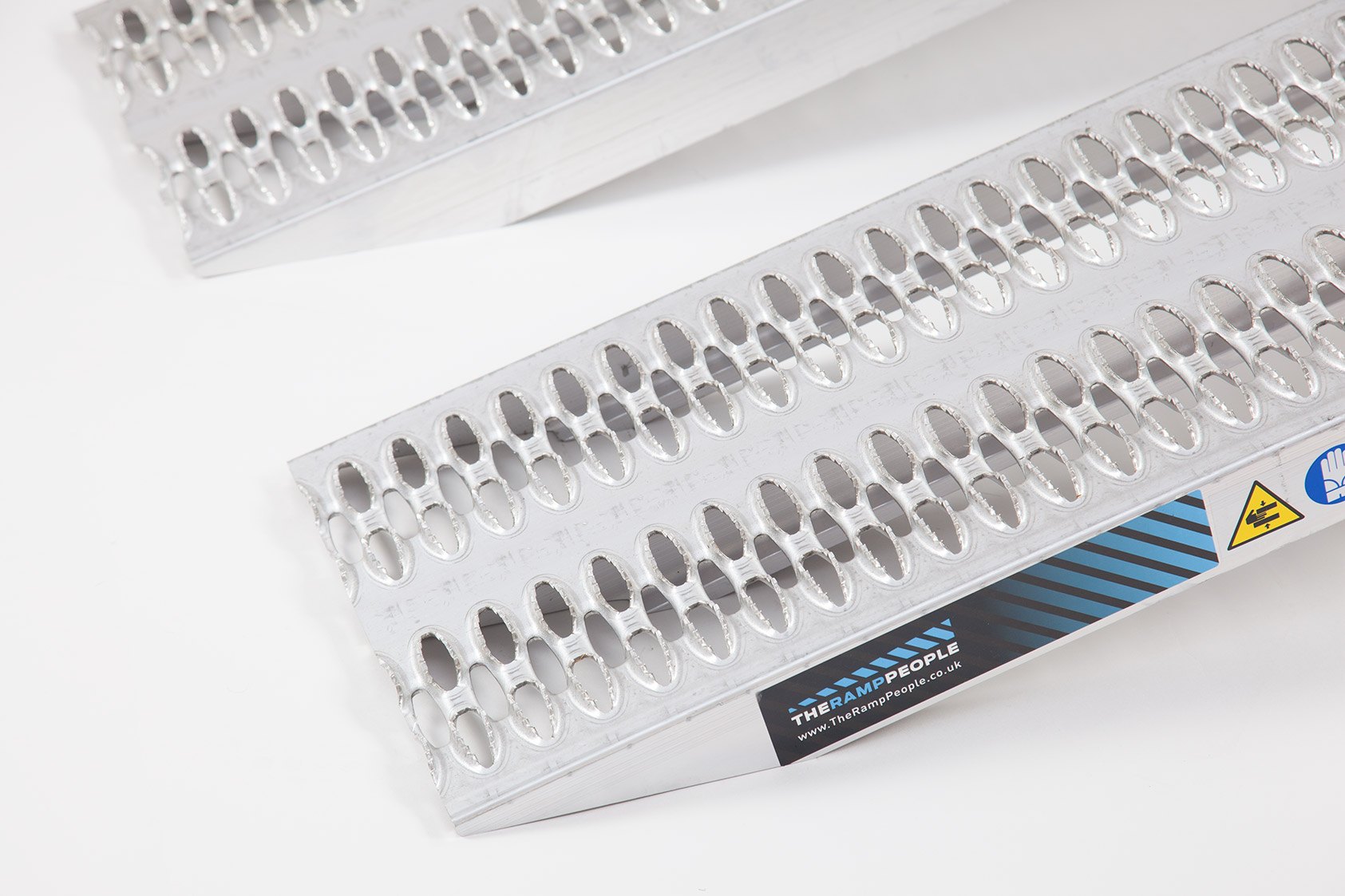

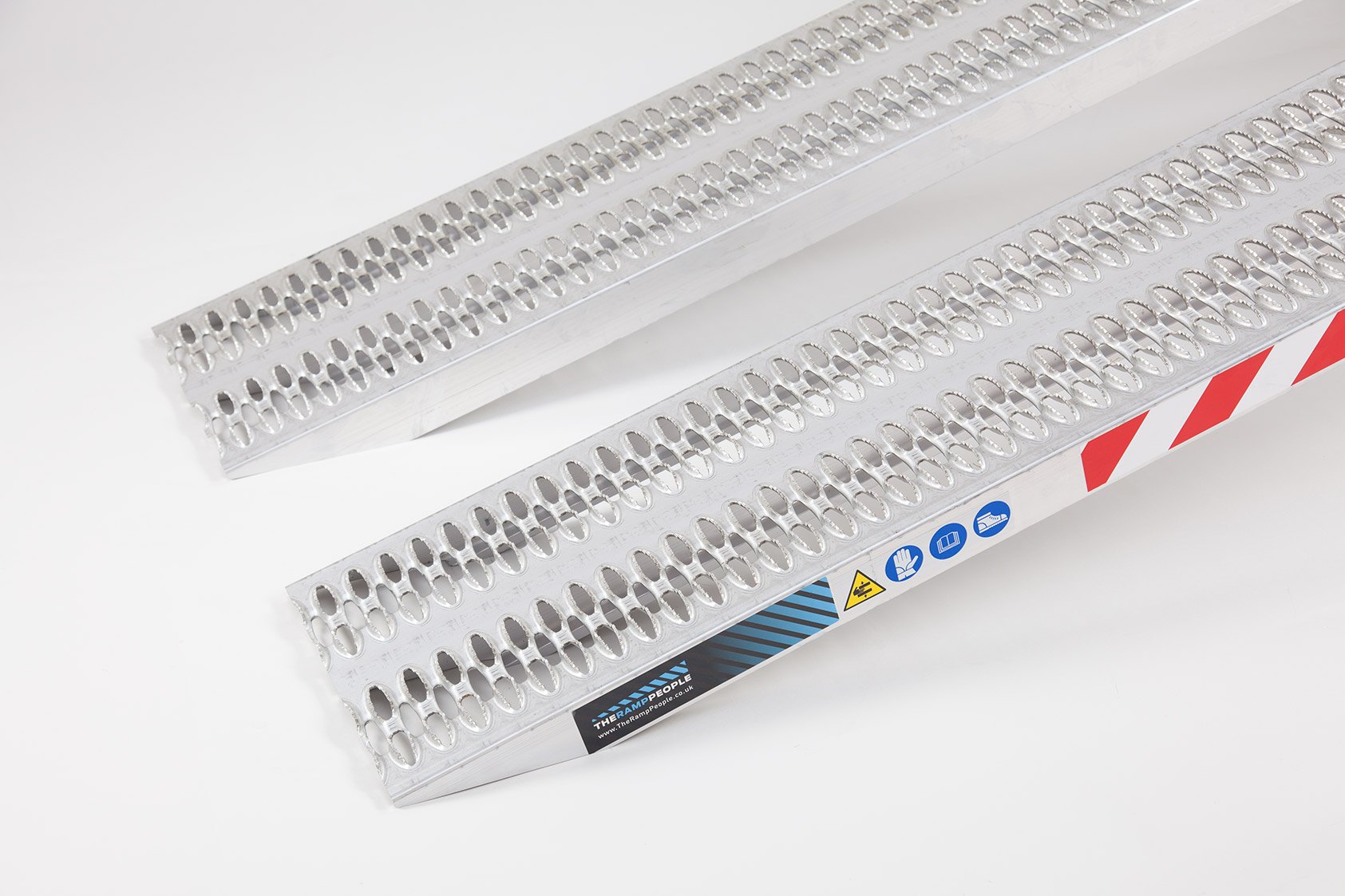

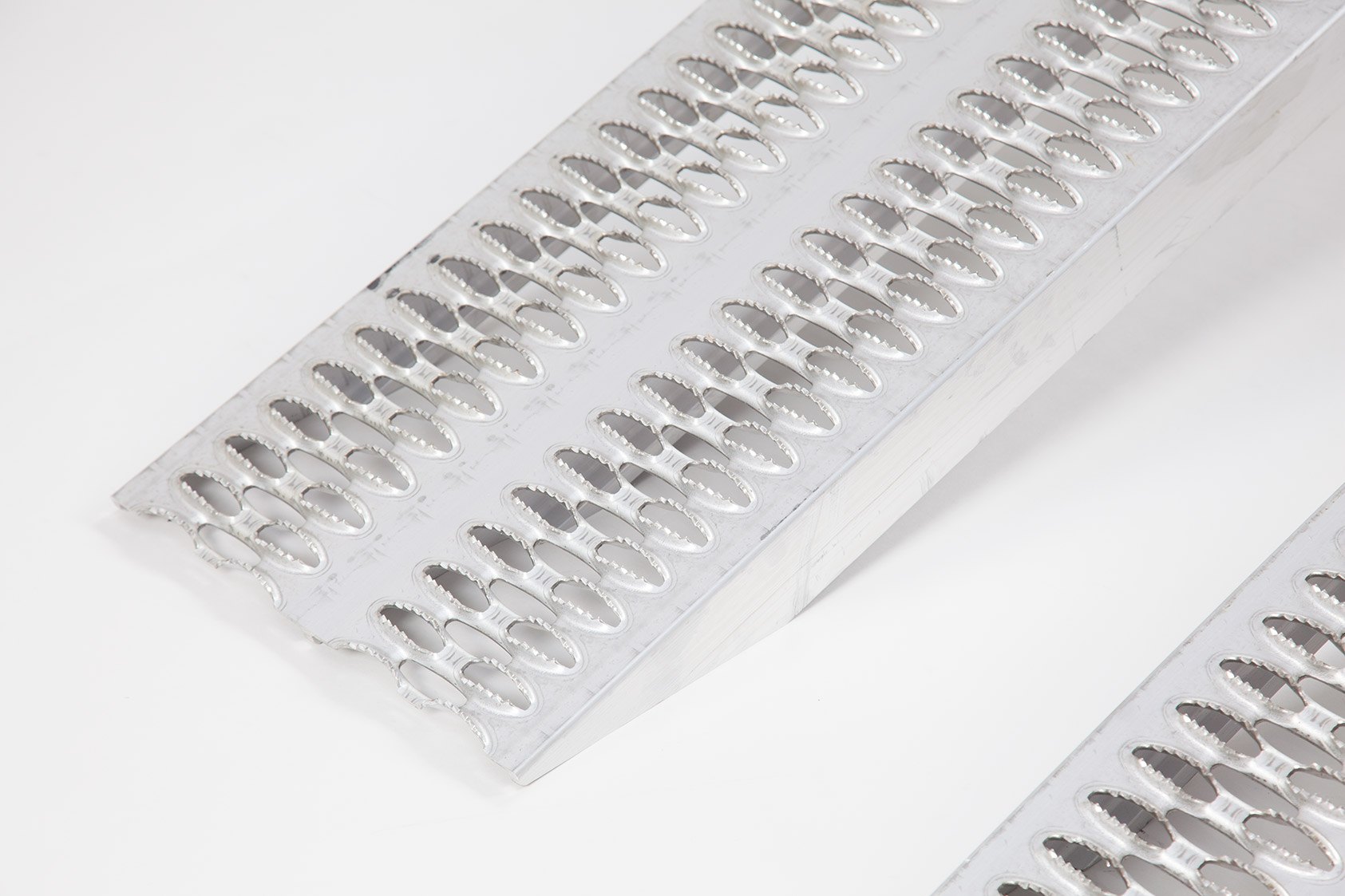

- Angled foot, this allows for smooth access onto the ramp when using wheeled vehicles
- Flat-top/no edge design gives greater flexibility of use
- Quotes for customised ramps are available
- TUV Certified
- The grip surface provides incredible traction - please ensure your tyres have sufficient tread to avoid damage, alternatively please view our aluminium loading ramps
- Use gloves and take extra care when handling these ramps due to the ramp surface
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Price and capacity stated is for the PAIR
Usage guidelines and safety information for our full vehicle ramp range can be found here.
SKU | TRP60/25 |
---|---|
Capacity (kg) | 3400 |
Height of Ramps Profile (mm) | 70 |
Length (mm) | 2500 |
Max Load Height (mm) | 750 |
Min. Load Height (mm) | 600 |
Weight per Ramp (kg) | 16.5 |
Weight Per Pair (kg) | 33 |
Width (mm) | 315 |
Minimum Track Width (mm) | 150 |
Maximum Track Width (mm) | 295 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Capacity Wheelbase 1000mm (kg) | 2400 |
Capacity Wheelbase 1250mm (kg) | 3000 |
Capacity Wheelbase 1500mm (kg) | 3400 |
